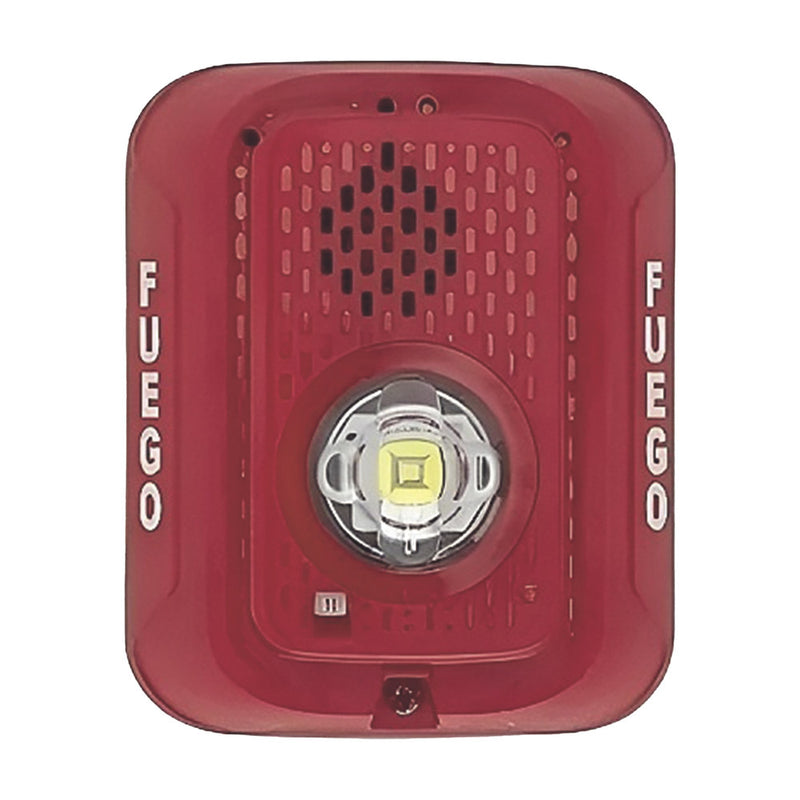

LED Strobe Siren / 2-Wire / Wall Mount / 15 to 185 Candelas / Temporal 3 High and Low / Tamper / Spanish Marking / Red
- Brand / Vendor: SYSTEM SENSOR
- Hardware Model / MPN: P2RLEDSP
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Fire Detection (test 2)
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
LED Strobe Siren
The P2RLEDSP is a 2-wire wall-mount notification appliance that combines a temporal 3 siren and LED strobe in a single red housing. It operates on 12 or 24 VDC with automatic voltage selection and features field-selectable candela settings from 15 to 185 cd. The plug-in design with universal mounting plate includes shorting springs for pre-installation wiring continuity verification. Front DVM test points allow voltage measurement without device removal. The unit supports synchronization via System Sensor Sync protocol or MDL3 module and is electrically compatible with SpectrAlert, SpectrAlert Advance, and L-Series devices. Spanish 'FUEGO' marking, UL/ULC listed, and FM approved.
Main Features
- 2-wire connection with automatic 12/24 VDC operation
- Field-selectable candela: 15, 30, 75, 95, 110, 135, 185 cd
- Plug-in design with universal mounting plate and shorting springs
- Front DVM test points for voltage measurement without dismounting
- Temporal 3 high/low tone with rotary switch selection
- Synchronization via System Sensor Sync protocol or MDL3 module
- Electrically compatible with SpectrAlert, SpectrAlert Advance, and L-Series
- 88+ dBA horn at 16 V
- Integrated tamper switch
- Spanish 'FUEGO' marking; UL/ULC listed; FM approved
Performance
Operating Voltage: 12/24 VDC (automatic selection)
Candela Settings: 15, 30, 75, 95, 110, 135, 185 cd (field-selectable)
Horn Output: 88+ dBA at 16 V
Tone Pattern: Temporal 3 (high/low)
Synchronization: System Sensor Sync protocol or MDL3 module
Compatibility: SpectrAlert, SpectrAlert Advance, L-Series devices
Physical & Electrical
Mounting: Wall mount
Wiring: 2-wire
Design: Plug-in with universal mounting plate
Test Features: Shorting springs for continuity; front DVM test points
Tamper: Integrated tamper switch
Color: Red housing
Marking: Spanish 'FUEGO' text
Certifications
Listings: UL, ULC
Approval: FM approved
Typical applications: commercial fire alarm systems, institutional facilities, and multi-occupancy buildings requiring Spanish-language notification appliances with synchronized audible and visual evacuation signaling.
