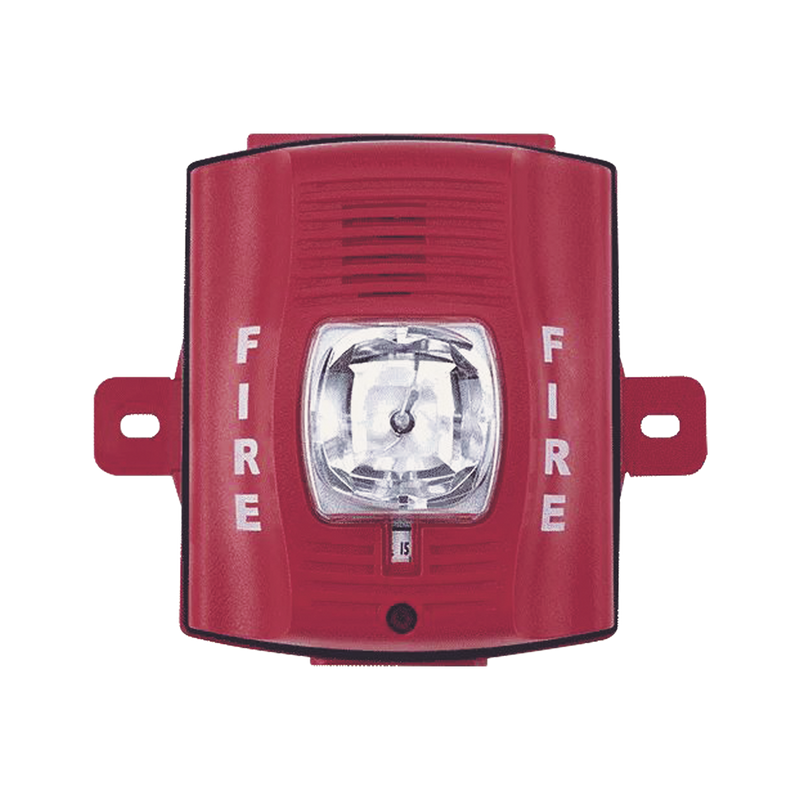

Red Two Wire Outdoor Horn Strobe Wall Mount
- Brand / Vendor: SYSTEM SENSOR
- Hardware Model / MPN: P2RH-K
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Fire Detection (test 2)
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
SpectrAlert Advance offers the broadest line of outdoor horns,strobes, and horn strobes in the industry. With white or red plastic housings, wall or ceiling mounting options, and plain or FIRE-printed devices, SpectrAlert Advance can meet virtually any application requirement, including indoor, outdoor, wet, and dry applications in temperatures from −40°F to 151°F.
Features
• Weatherproof per NEMA 4X, IP56
• Listed to UL 1638 (strobe) and UL 464 (horn)
• Compatible with System Sensor synchronization protocol and legacy SpectrAlert products
• Field-selectable candela settings: 15, 15/75, 30, 75, 95, 110, 115, 135, 150, 177, and 185
• Automatic selection of 12- or 24-volt operation at 15 and 15/75 candela
• Rotary switch for horn tone and three volume selections
• Horn rated at 88+ dBA at 16 volts
• Rated from –40°F to 151°F
• Universal mounting plate with an onboard shorting spring that tests wiring continuity before devices are installed
• Plug-in design with minimal intrusion into the back box
• Tamper-resistant construction • Listed for ceiling or wall mounting
Specs
Operating Temperature –40°F to 151°F (–40°C to 66°C)
Strobe Flash Rate 1 flash per second
Nominal Voltage Regulated 12 DC/FWR or regulated 24 DC/FWR1
Operating Voltage Range2 8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal)
Input Terminal Wire Gauge 12 to 18 AWG
Wall-Mount Dimensions (including lens) 5.6Ë L × 4.7Ë W × 2.5Ë D (142 mm L × 119 mm W × 64 mm D)
Horn Dimensions 5.6Ë L × 4.7Ë W × 1.3Ë D (142 mm L × 119 mm W × 33 mm D)
Wall-Mount Weatherproof Back Box Dimensions (SA-WBB) 5.7Ë L × 5.1Ë W × 2.0Ë D (145 mm L × 130 mm W × 51 mm D)
