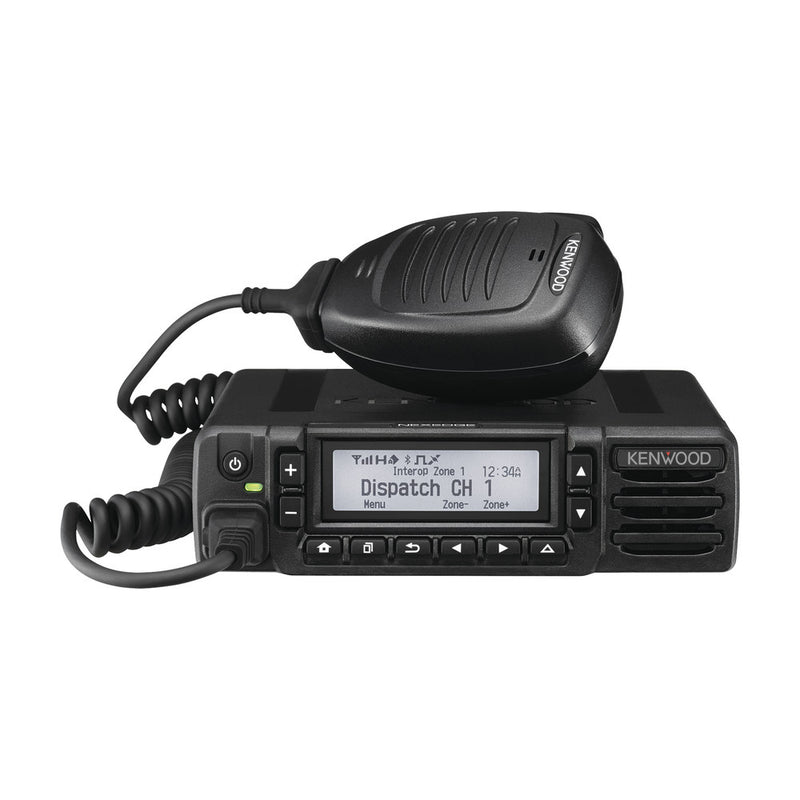

136-174 MHz, Digital NXDN-DMR-Analog, 512 Channels, GPS, Bluetooth, Noise Reduction
- Brand / Vendor: KENWOOD
- Hardware Model / MPN: NX-3720-HGK
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
This versatile handheld radio supports both NXDN® and DMR digital protocols as well as mixed digital & FM analog operation, enabling it to serve with distinction in a wide range of enterprise and operation critical applications. Compact yet designed with durability in mind, it’s packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. Three different models are available: Full Keypad model with LCD, Standard Keypad model with LCD and a large 4-way D-pad, and the Basic Model without LCD or keypad. Additionally, for expansion capability a software license certification system facilitates extensive customization.
FEATURE HIGHLIGHTS
- Multi-protocol digital radio: Designed to operate NXDN® or DMR digital, and FM analog protocols
- NXDN® Conventional and Type-C & Gen2 Trunking
- DMR Tier II & Site Roaming
- Mixed Digital & FM Analog Operation allows gradual migration at your own pace
- 4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide) / 14 Characters
- 5-Line Text Message Frame (3 Lines of Text, icon & key guide)
- 7-color Light Bar Indicator on the top panel
- 4-way Directional-pad (D-pad) for intuitive control and operation
- Built-In GPS Receiver/Antenna for effective fleet management
- Built-in Bluetooth® for hands-free operation - Applicable
- Bluetooth profiles: HSP (Headset Profile provided) and SPP (Serial Port Profile available as an option)
- Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
- Software DES and AES Encryptions for NXDN
- Conventional/Trunking and DMR Conventional protocols
- Built-in Motion Sensor (Man-down, Stationary and Motion Detection)
- IP54/55/67 and MIL-STD-810 C/D/E/F/G
GENERAL FEATURES
- 1 Watt Audio Output Power
- UHF: 120 MHz capability
- Available models: Full Keypad (w/ LCD and full keypad), Standard Keypad (w/ LCD and 4-way large D-pad/4 key), and Basic (w/o LCD and keypad)
- 260 CH/128 Zones (64 CH/4 Zones for Basic model)
- Maximum of 1,000 CH/Radio with option
- Intrinsically Safe Option (Future Availability)
- Paging Call
- Emergency Call
- Status/Text Message
- Remote Stun/Kill/Check
DIGITAL – NXDN® MODE
- NXDN Type-C & Gen2 Trunked
- NXDN Conventional
- 6.25 & 12.5 kHz Channels
- All Group Call
- Over-the-Air Alias (OAA)
- Over-the-Air Programming (OTAP)
DIGITAL – DMR MODE
- Complies with ETSI DMR Tier II standards
- Two-slot TDMA in 12.5 kHz channels
- Call Interruption
- Dual-slot Direct Mode
- ARC4 Encryption
- Energy Efficient
ANALOG - FM MODE
- Conventional & LTR Trunking
- FleetSync/II: PTT ID ANI / Caller ID Display,
- Selective Group Call, Emergency Status / Text
- Messages
- MDC-1200: PTT ID ANI / Caller ID Display,
- Emergency, Radio Check / Inhibit
- QT / DQT, 2-Tone
- Built-in Voice Inversion Scrambler
Optional Licenses
- KWDâ€3001FP License Key for Front Panel Programming
- KWDâ€3002BT License Key for Bluetooth Serial Port Profile
- KWDâ€3501TR License Key for Digital Trunking (Includes NXDN Typeâ€C and NXDN Gen2 Trunking)
- KWDâ€3502EE License Key for DMR ARC4 Enhanced Encryption
- KWDâ€3504RC License Key for Remote Control by Subscriber Unit
