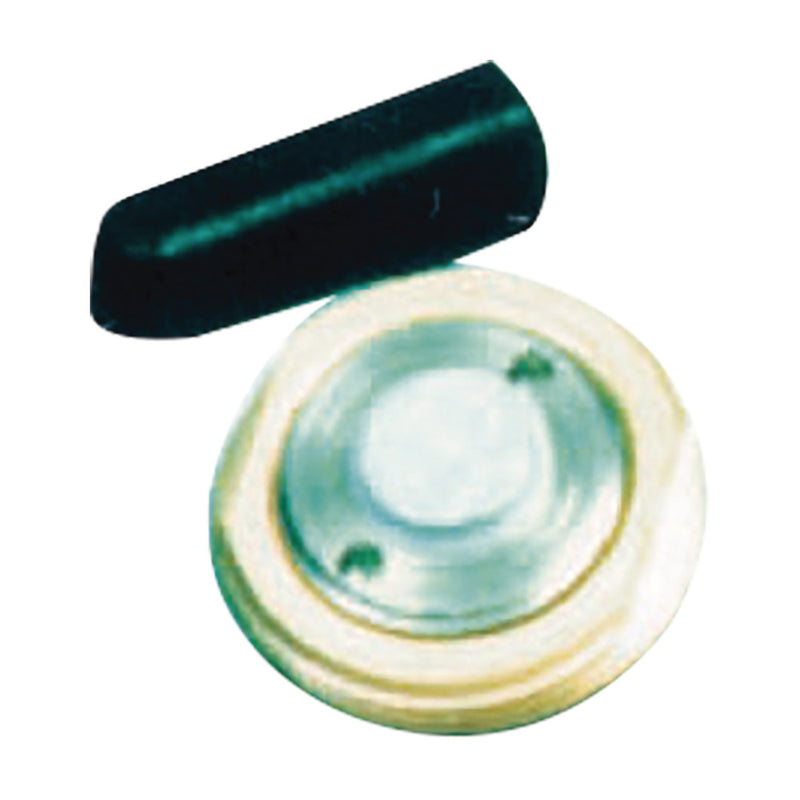

MAXRAD 3/4' Hole Mount (NMO), Cable and Connector Sold Separately
- Brand / Vendor: PCTEL
- Hardware Model / MPN: NMO34
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Permanent NMO mount for mobile antennas. Brass construction with gold-plated contact for stable electrical connection. Designed for top-side vehicle installation using a 3/4 inch (19 mm) hole. Requires separate cable and connector to complete installation. Suitable for mobile radio applications in vehicular fleets.
Main Features
- Permanent NMO mount with brass and gold-plated contact
- 3/4 inch (19 mm) hole diameter
- 1-1/8-18 thread for secure installation
- 50 ohm impedance with 1.5:1 VSWR
- Maximum power handling 50W
- Top-side installation, no cable or connector included
Performance
Impedance: 50 ohms
VSWR: 1.5:1
Maximum power: 50W
Physical & Mechanical
Mount type: NMO (Permanent)
Material: Brass with gold-plated contact
Hole diameter: 3/4 inch (19 mm)
Thread: 1-1/8-18
Installation: Top-side
Package Contents
NMO mount only. Cable and connector sold separately.
Typical applications: mobile radio installations in commercial, emergency, and fleet vehicles requiring permanent antenna mount with separate lower connection.
