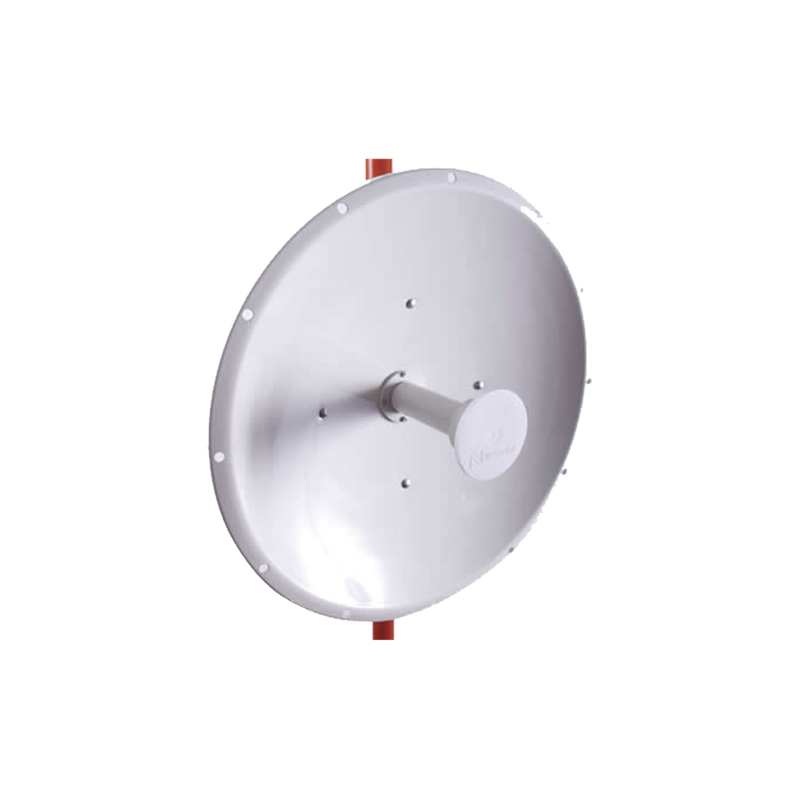

Directional Antenna of 3.937 ft Diameter, 4.9 - 6.2 GHz 37 DBi with SLANT, 2 N-Female Connectors, Includes Mounting
- Brand / Vendor: NETPOINT
- Hardware Model / MPN: NP-3
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Hardware
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: NETPOINT | Model / MPN: NP-3
Availability: Standard Supplier Lead Time
47.2' (3.937 ft) diameter directional antenna, 4.9-6.2 GHz 37 DBi with SLANT for point-to-point applications.
Main Features:
- The widest frequency range in the market
- Connectivity with other brands such as Ubiquiti, Mimosa, Cambium, and many others
- 45 ° polarization in order to reduce noise levels
- Highly robust and stable
- Customizable: Wind and corrosion resistance could be increased to order in addition to customizable mounting for all types of towers.
- High-precision parabolic reflector
- Constructed from extruded aluminum
- Features V/H dual polarization
- Includes mounting hardware
- Comes with support for a universal radio
- Offers 45° polarization
- Frequency range: 4.9 - 6.2 GHz
- Gain(dBi):
- Low – 35.2 dBi
- Medium – 35.7 dBi
- High – 37.0 dBi - Dimensions: 47.24' (1.20 m) diameter
- Cross-polar discrimation: 30 dB
- Operating temperature: -49 ~ +131F (-45 ~ +55 °C)
- VSWR/return loss: 4.43:1/15 dB
- Insulation: 35 dB
- Relative humidity: 15 to100%
- Dua Polarization
- Wind resistance speed: 111.8 mph (180 km/h)
- Wind load survival: 155.3 mph (250 km/h)
- Azimuth adjustment: 360°
- Elevation adjustment: ±15
- Suggested mast diameter: 1.97 – 2.75', 3.94 - 4.48' (50 - 70, 100 - 114mm)
- Operating temperature: -45 ~ 140F (-45 to +60ºC)
