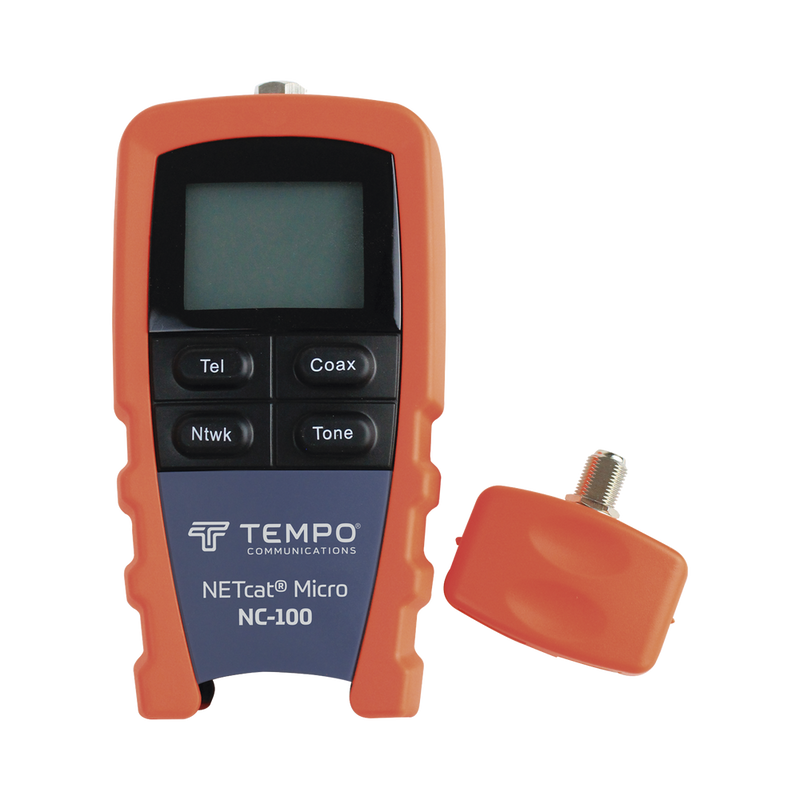

NETcat® Micro Wiring Tester for UTP, STP and Coaxial Cable
- Brand / Vendor: TEMPO
- Hardware Model / MPN: NC-100
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Structured Cabling
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
The NETcat® Micro wiring tester is a device that verifies twisted pair and coaxial cables. It uses high-speed digital technology to check wiring continuity and correct allocation of wire pairs. NETcat Micro, NC-100 Tests shielded twisted pair (STP), unshielded twisted pair (UTP), and coaxial cables.
- Detects shorts, opens, reversed polarity, crossed, and split pairs.
- Nested remote allows end-to-end testing of all wiring types.
- Simple testing of LAN wiring and phone lines.
- Warning of hazardous voltages.
- Detection of common wiring and connector errors.
- Tracing modes can be adjusted for high performance LAN cables
- Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables
- TIA/EIA standard wiring pair verification for LAN
- USOC standard wiring verification for telephone
- Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting
- Complete set of connector types standard (telephone, LAN, and coax)
- Nested remote allows end-to-end testing of all wiring types
- Checks for reversed telephone wires
| Attribute Name | Attribute Value |
|---|---|
| Backlight | Green LED |
| Battery | 9 V Alkaline Battery (PP3) |
| Buttons | Four Momentary Contact Push Button |
| Depth | 33 MM |
| Display LCD | Icon And Seven Segment Type |
| Frequency Rating | 577 HZ And 983 HZ |
| Humidity | 0 To 95 PCT Non-Condensing |
| Interface Connections | RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female Coaxial Connectors |
| Length | 150 MM |
| Minimum Cable Length | 2 m to 3 m (5 ft to 10 ft) |
| Pair Tracing Tones | Alternating Frequencies Of 577 HZ And 983 HZ Are Produced At Three User Selectable Rates |
| Standard | TIA/EIA |
| StorageOperatingTemperature | -10 To 60 DEG C0 - 50 DEG C |
| Type | Micro Digital Voice Data And Video Wiring |
| Weight | 220 g (0.5 lb) (including remote unit and a typical battery) |
| Width | 70.000 MM |
