Radio PTP Backhaul, Integrated antenna of 8 dBi, MIMO 4X4: 4ac, 4.9 - 6.4 GHz, IP67, Speed up to 1.5 Gbps, 2.4 GHz administration radio, Mimosa Cloud Monitoring and Management
- Brand / Vendor: MIMOSA NETWORKS
- Hardware Model / MPN: B5X
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Hardware
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: MIMOSA NETWORKS | Model / MPN: B5X
Availability: Immediate Dispatch from USA Warehouses
B5X.

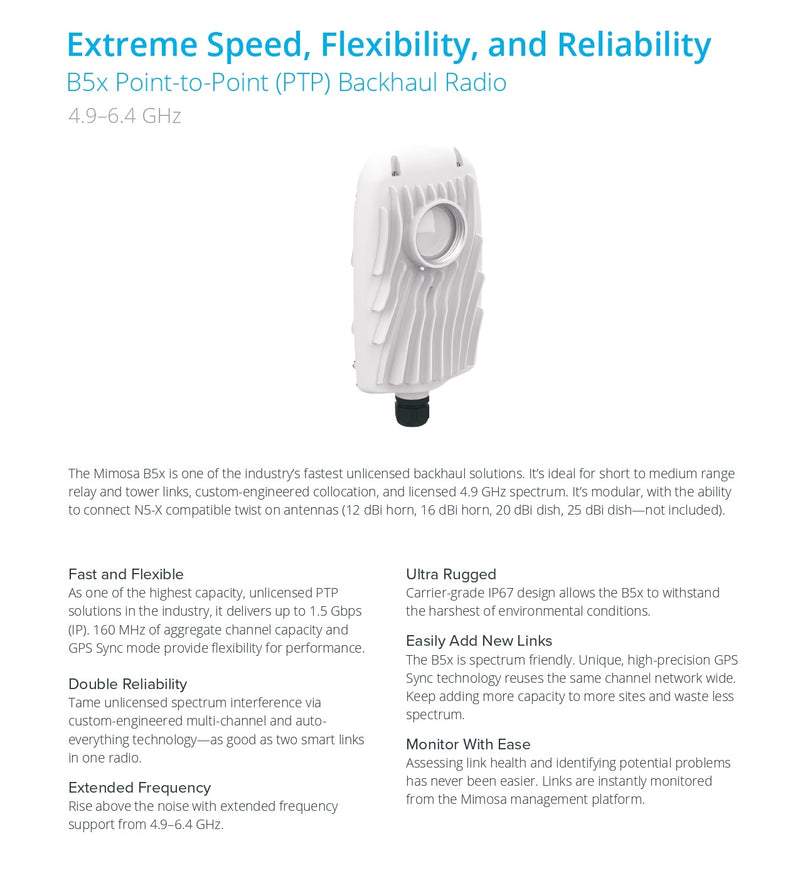

The Mimosa B5x is one of the fastest unlicensed backhaul solutions in the industry. It's ideal for short- to mid-range relay and tower links, custom placement, and licensed 4.9 GHz spectrum. It is modular and allows connection of N5-X compatible twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, and 25 dBi dish; not included).
RF Features
- Channel Width: Single or dual 20/40/80 MHz channels
- Frequency Range: 4.90–6.40 GHz
- Transmit Power: 27 dBm
- Operates only as a PTP with another B5X unit.
Physical and Electrical Features
- Maximum Power Consumption: 20 Watts
- Dimensions: 241 mm x 139 mm x 76 mm
- Weight: 1.4 kg
- Operating Temperature: -40° C to 55° C (-40° F to 131° F)
- Protection Rating: IP67
- 1 Ethernet Port 10/100/1000
Note: The unit includes an internal lightning protector; it is recommended to ground it to a physical earth.
