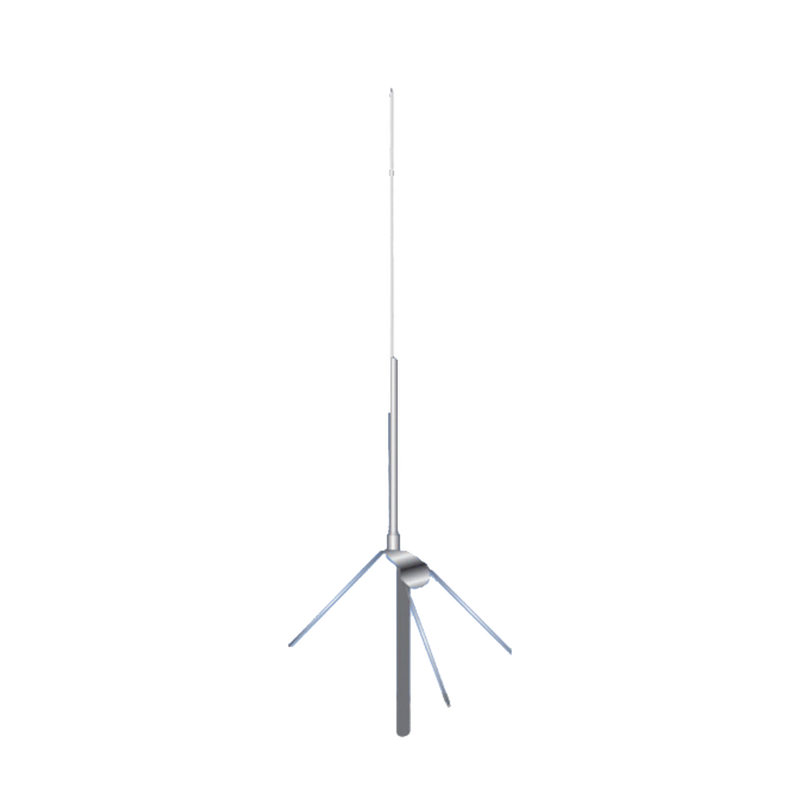

UHF/VHF Omnidirectional Base Antenna, 144 - 174 MHz Vertical Collinear, 3dB at 250 W
- Brand / Vendor: PCTEL
- Hardware Model / MPN: MBX-150
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
- Maximum Power: 250 watts
- Normal Impedance: 50 ohms
- Radiator Material: 6061-T6 aluminum tubing
- lightning Protection: DC grounded
- Wind Survival: 90 mph
- Termination: SO-239 standard;
N female connector is optional
- Maximum Mounting Pipe Diameter:
VHF: 1-1/4”
UHF: 1”
- Mounting Method: Built-in clamp (included)
- Frecuency range: 144-174 MHz.
- Gain: 3 dB.
- Bandwidth: 4 MHz.
- Connector: UHF Female.
- Wind resistance: 145 km/h.
- Max length: 9.15 ft (2.79 m)
- Weight: 12.4 lbs (5.62 Kg)
- Base matched vertical collinear antenna with phasing stub coupling
for efficient operation without radials
- Adjustment to exact operation frequency with stainless steel
full-lock clamps
The MBX VHF/UHF antennas offer an economical choice for omnidirectional
high gain applications. The 6061-T6 aluminum tubing and stainless steel
hardware provides years of trouble free service.
