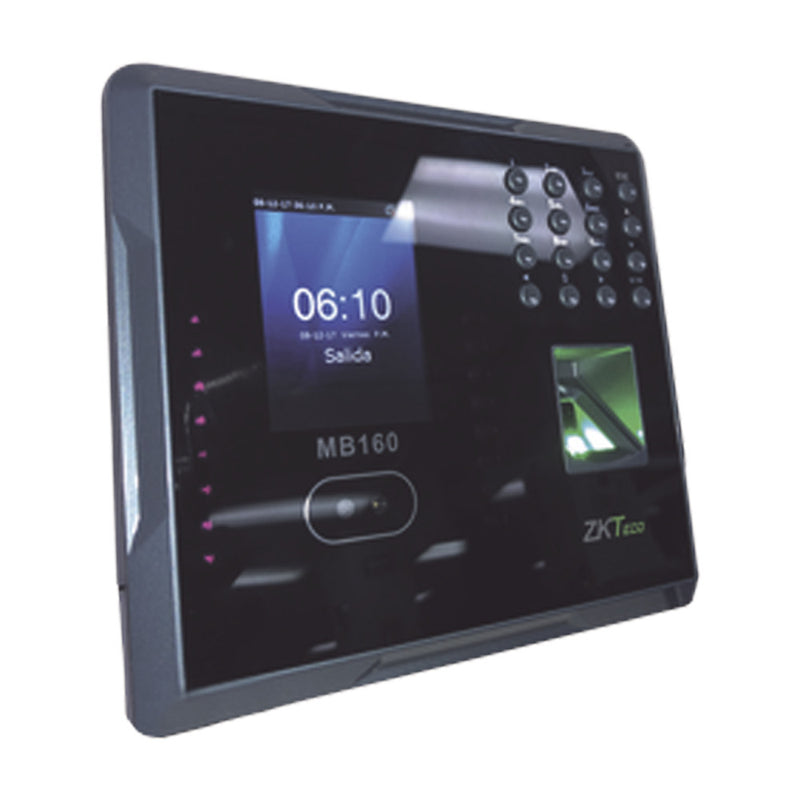

The MB160 is an innovative device for time management and employee assistance. It supports verification methods through the face, fingerprint, password, and combinations of the above in addition to basic Access Control functions.




Common Application:

• Time management and employee assistance.
• Access Control.

Functions:

Time & Assistance:

• ADMS Ready. The MB160 is ready to work with BIOTIMEPRO, allowing the easy management of employees in remote sites in a centralized way.
• Verification mode through the face, fingerprint or both combined.
• Face enrolling directly on the device.
• Check in and check out records
• Fingerprint enrolling directly on the device or remotely via software (Requires ZK4000 o ZK7500).

Access Control:

• Relay output.

• Alarm output to generate programmed audible alarms.

• Request to exit button input.

•  Power supply 12V 1.5A (Power supply not included) recommended P12DC3A

Printer (optional):
Compatible with EPSON and RONGTA serial printers
The ticket format cannot be modified.
It possible to choose which elements will be printed.

• Company name
• User ID
• Name
• Punch Time
• Punch State
• Device ID
• Print Time
• Verification Mode



---

Technical Specifications:

Face Capacity	1,500
Fingerprint Capacity	1,500
ID Card Capacity	1,500
Record Capacity	100,000
Display	2.8-inch TFT Screen
Communication	TCP/IP, ADMS USB-Host, Wi-Fi (Optional)
Standard Functions	SMS, DTS, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, Photo ID, Camera, Multi-verification, 12V Output, RS232 Printer (Optional Cable)
Optional Functions	MF Cards, Work Code
Interface fot Access Control	3rd Party Electric Lock, Exit Button, Alarm
Power Supply	DC 12V 1.5A
Verifcation Speed	≤ 1Sec.
Operating Temp.	0°c - 45°c
Operating Humidity	20% - 80%
Dimension	167.5 x 148.8 x 32.2 mm (Length*Width*Thickness)



Software Compatibility:

ZKAccess 3.5 (free)

The software can manage Access control and Time & Attendance at the same time, get a basic report for Check-In and Check-Out (For Time & Attendance Terminals up to 1000 employees).

ZKTimeNET 3.0 (Requires License)
- Real-Time monitoring for the employees (Check-In, Check-Out or Not registered yet).
- More than 15 different reports (Transactions, Attendance, Late arrival, Early out, Absence, etc).
- Management for different Shifts, Breaks, etc.
- ZKTN3S (500 employees and 50 Terminals)
- ZKTN3P (1000 employees and 50 Terminals)
- ZKTN3A (2000 employees and 50 Terminals)

* La capacidad de usuarios depende directamente de la capacidad del biométrico.
