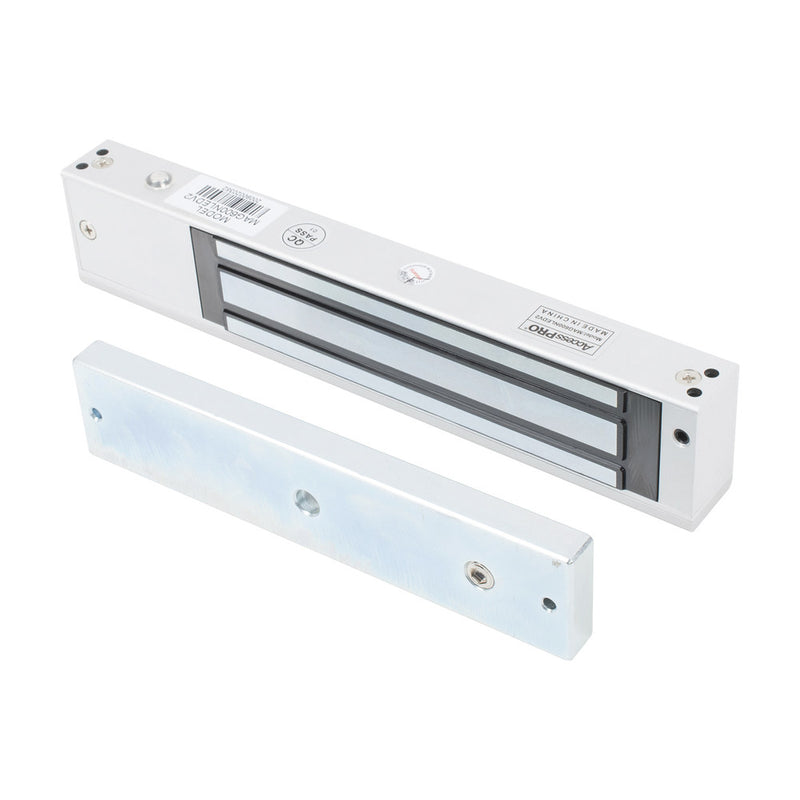

Single Door Magnetic Lock 600Lb / Anti-Residual Magnetism Design / Lock Status sensor / LED ultra bright
- Brand / Vendor: ACCESSPRO
- Hardware Model / MPN: MAG600NLEDV2
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Standard mag locks can keep a faint pull after power is cut, leaving the door feeling stuck. This design releases clean the moment it's de-energized.
| Holding force | 600 lb |
| Release behavior | No residual pull |
| Door types | Security, iron, aluminum |
An ultra-bright LED shows lock state at a glance, and the integrated plate sensor reports door position back to your access control panel.
| Status output | NO / NC / COM dry contact |
| Contact rating | 0.5A @ 30V DC max |
| Indicator | Ultra-bright LED |
- Holding force: 600 lb
- Single door magnetic lock
- Anti-residual magnetism design
- Ultra-bright LED status indicator
- Integrated plate status sensor
- Door status output: NO / NC / COM
- Jumper-selectable 12V or 24V DC
- For security, iron and aluminum doors
- Input voltage: 12V DC or 24V DC
- Current draw: 500mA @ 12V · 250mA @ 24V
- Minimum supply: 0.5A @ 12V · 0.25A @ 24V
- Contact limit: 0.5A / 30V DC
- Dimensions: 9.84' x 1.92' x 1.10'
- Weight: 4.63 lb
- Operating temperature: 14°F ~ 131°F
- Lock body mounts to the door frame
- Armature plate mounts to the door leaf
- Supports 'I', 'L', 'ZL' and 'U' mounting
- Rubber washer allows plate self-alignment
- Voltage selector jumper on-board
- Keep door closed while drilling holes
- Handle armature plate carefully — surface damage reduces holding force
Four mounting configurations, one lock
The same MAG600NLEDV2 body adapts to inswing, outswing, narrow-frame and frameless glass doors — you only change the bracket.
Compatible mounting accessories
Pick the bracket that matches the door and you're done — both are made for this lock body.
Product views
Full specifications
| Performance | |
| Holding force | 600 lb |
| Configuration | Single door |
| Magnetism design | Anti-residual (no lingering pull on release) |
| Compatible doors | Security, iron, aluminum · glass with U bracket |
| Electrical | |
| Input voltage | 12V DC or 24V DC (jumper-selectable) |
| Current draw | 500mA @ 12V DC · 250mA @ 24V DC |
| Minimum supply | 0.5A @ 12V DC · 0.25A @ 24V DC |
| Status output | NO / NC / COM dry contact |
| Contact rating (max) | 0.5A / 30V DC — do not overload |
| Indicator | Ultra-bright LED lock status |
| Physical | |
| Dimensions | 9.84' x 1.92' x 1.10' (L x W x H) |
| Weight | 4.63 lb |
| Operating temperature | 14°F ~ 131°F |
| Mounting options | 'I', 'L', 'ZL', 'U' (brackets sold separately) |
- Mount the lock body on the door frame and the armature plate on the door leaf.
- Keep the door closed while drilling so the plate and lock line up.
- Leave the rubber washer slightly loose — the plate should shift a little when locked so it can self-align against the magnet.
- Handle the armature plate carefully: any surface damage reduces holding force.
- Confirm the voltage selector jumper matches your supply before powering up.
- Do not exceed 0.5A / 30V DC on the status contact.
*All pictures and specifications are for reference only and are subject to change without prior notice.
