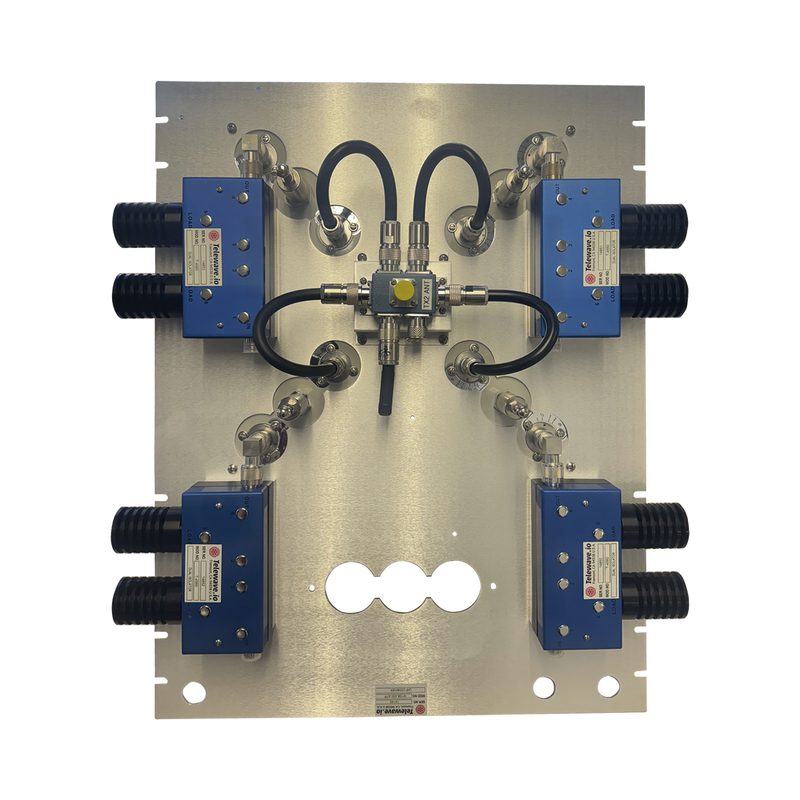

UHF Combiner in Panel for 19' Rack Mount, 400-512 MHz, 4 Channels (8' Dia.) 250 KHz Sep, 100/150 Watt, N Female.
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: M108-450-4TP
- Deal Status: ⚡ Special Deal (50% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Combiner in Panel for 19' Rack Mount, 400-512 MHz, 4 Ch (8'Dia) 250 KHz, 100/150 W.
- Frequency Range: 400-512 MHz.
- Number of Channels: 4 (8' Diameter per Cavity size) 1/4 wave.
- Rack and Monitoring Watmeter on Panel are Optionals.
- Channel Separation (min): 250 kHz.
- Input Power (Std./Opt.): 100/150 Watt per channel.
- Impedance / Input VSWR (typ.): 50 Ohm / 1.25:1
- Insertion Loss per ch. (typ): 3.25 dB at 275 kHz. Spacing.
- TX-to-TX Isolation (typ.): 80 dB.
- Antenna to TX Isolation (typ.): 75 dB.
- 2nd Harmoinic Suppression (typ.): 90 dB.
- Operating Temperature: -30ºC to +60ºC.
- Mounting / Connectors: 19' Rack Mount / N Female.
- 4 ch Panel Dimensions (H x W x D): 17.5 x 19 x 26 in.
- Weight: 42 lbs.
*Ask for Delivery Time.
