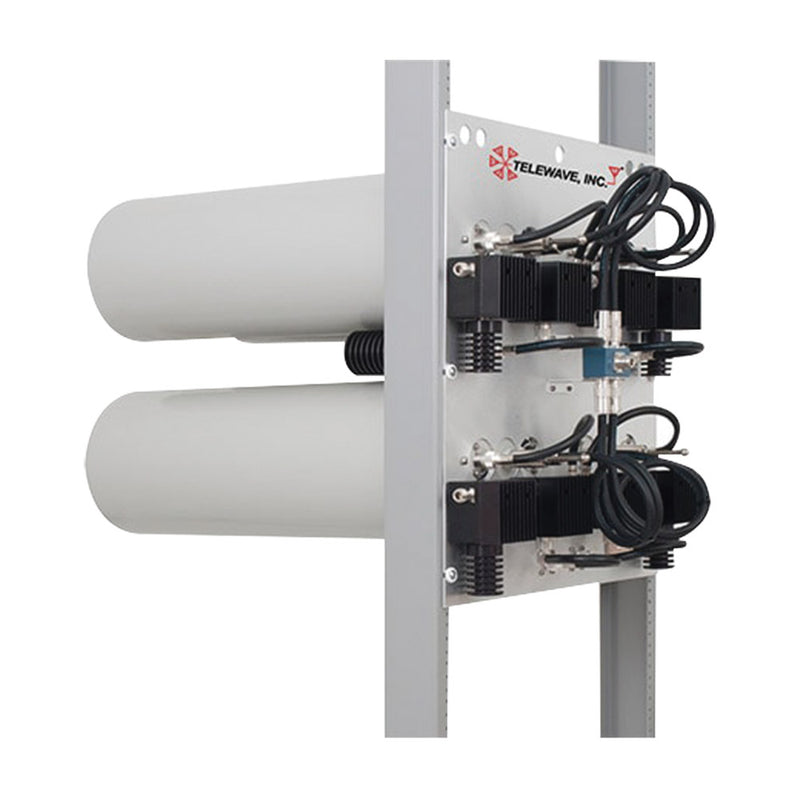

Panel Combiner for 19' Rack Mount, 148-174 MHz, 5 Channel (8'), 125 KHz, 115 Watt, N Females.
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: M108-150-5TPM
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Panel Combiner for 19' Rack Mount, 148-174 MHz, 5 Channel, 125 KHz, 115W.
- Frequency range: 148-174 MHz.
- Number of channels: 5 (8' Diameter).
- Optional Wattmeter in Panel for In/Out Power Monitoring .
- 19' Optional Mounting Rack (TBR-7219).
- Input Power: 115 Watt.
- Impedance / Input VSWR (typ): 50 Ohm / 1.25: 1
- Isolation between TX-TX: 75 dB
- Antenna-TX isolation: 70 dB.
- Separation TX-TX (min.): 125 kHz.
- Loads: 60 W for the second stage of the insulator (100 W optional).
- Operating Temperature: -30°C to + 60°C.
- Connectors: N Female In / Out.
- Panel Dimensions (HWD): 21 x 19 x 16 mm.
* Ask for Delivery Time.
