Fiber Optic Distributor, empty, 19in, Accepts 72 Adapters 'LC Duplex' or 'LC Simplex' or 48 'SC' Simplex, 4U
- Brand / Vendor: LINKEDPRO BY EPCOM
- Hardware Model / MPN: LP-ODF-8072
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Structured Cabling
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico

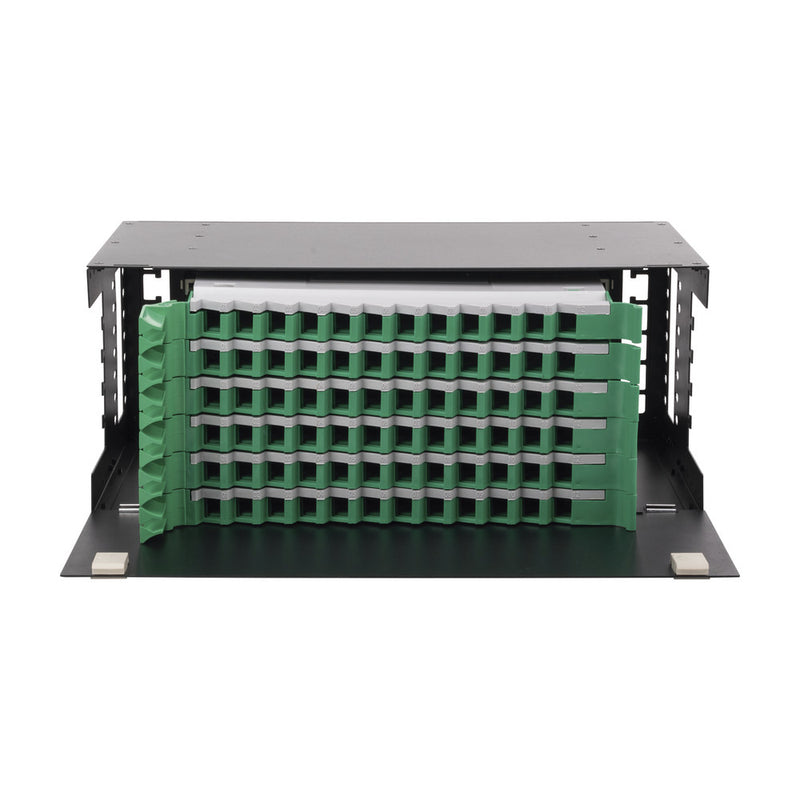

Fiber Optic Distributor
This fiber optic distributor is a 19-inch rack-mount enclosure designed for indoor installations in data centers and FTTH networks. The unit provides capacity for up to 72 fiber connections through interchangeable adapter configurations. It features six integrated splice trays with sliding mechanism for organized cable management. The chassis accepts SC, LC APC, PC, and UPC polished adapters. Four cable entry points accommodate fiber cables up to 16 mm diameter, supporting both loose tube and tight buffer cable types.
Main Features
- Capacity for 72 simultaneous optical fibers
- Compatibility with SC, LC APC/PC/UPC adapters
- 4 cable entry points for 16 mm diameter cables
- 6 integrated splice trays, 12 splices each
- 19-inch 4U rack-mount design for standard installation
- Efficient management for FTTH networks and data centers
Performance
- Type: Optical fiber distributor
- Number of ports: 72
- Adapter compatibility: SC, LC (APC, PC, UPC polish types)
- Configuration options: 72 LC Duplex, 72 LC Simplex, or 48 SC Simplex adapters
- Splice capacity: 72 fibers (6 trays x 12 splices)
- Application: Indoor use
Physical & Electrical
- Rack units: 4U
- Mounting: 19-inch standard rack
- Style: Flat
- Color: Black
- Cable entry points: 4
- Maximum cable diameter: 16 mm
- Splice trays included: 6 (sliding type)
Typical applications: Data center fiber distribution, FTTH network termination points, telecommunications rooms, and structured cabling systems for indoor environments.
