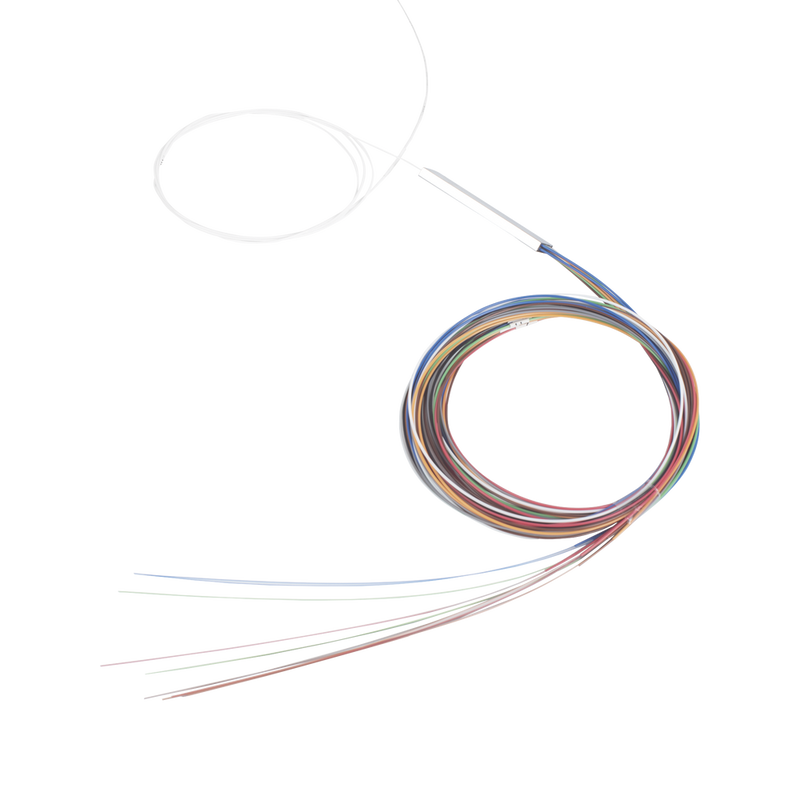

Bare fiber splitter 1x16 without connectors, g657a, 250um, in transparent, out international colors. individual packing.
- Brand / Vendor: LINKEDPRO BY EPCOM
- Hardware Model / MPN: LP-FAB-PLC1X16WC-A1-250U
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Hardware
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: LINKEDPRO BY EPCOM | Model / MPN: LP-FAB-PLC1X16WC-A1-250U
Availability: Immediate Dispatch from USA Warehouses
CHA21FO/215049-linkedpro_banner_fftx.png)
The PLC optical splitter is an important component in an FTTx network. It is based on planar wave technology, providing a cost-effective and space-saving solution in the network. The PLC splitter evenly divides an optical signal from one or two input ports to multiple output ports. It can work on wavelengths from 1260 to 1650nm. It has a compact size and can be installed in underground, aerial, poles, pedestals, and rack systems.
The LinkedPro PLC splitter adopts patented low-loss technology. It has low insertion loss, low polarization loss, and high port uniformity. All products fully comply with Telcordia GR-1209 and GR-1221 standards, and all materials used comply with RoHS directives. PLC splitters are available in a wide range of configurations, pre-terminated and boxed for harsh environments, in compact square boxes or flat tubes.
- Input: Pigtail Loose tube without connector
- Outputs: Pigtail Loose tube without connector
- Complies with G.657A optical fiber standard
- 1X16 splitter
- Operating temperature: -40 to 85ºC
- Relative humidity: 20~95 (%RH)
Optical properties:
- Operating wavelength: 1260 ~1650nm Maximum
- input power: >300mW
- Directivity: >55dB WDL: <0.5dB PDL: <0.3dB
- Uniformity: <0.8dB
- Insertion loss: ≤7.2dB
- Return loss: > 55dB
Applications:
- FTTx
- LAN, WAN
- CATV
- Testing and measurement
