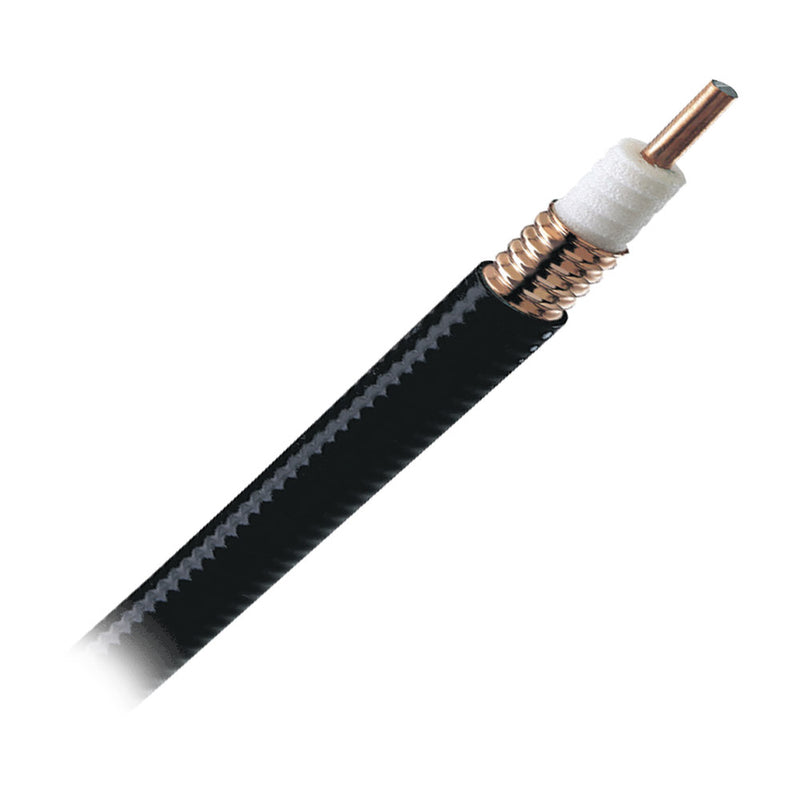

Heliax Low Density Foam Coaxial Cable, Corrugated Copper, Black PE Jacket
- Brand / Vendor: ANDREW / COMMSCOPE
- Hardware Model / MPN: LDF450AFT
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Electrical Specifications:
• Impedance cable: 50 Ω ± 1 Ω
• Capacity: 32.1 pF/ft | 75.8 pF/m
• DC Resistance, Inner Conductor 2.376 Ω/mi | 2.382 Ω/mi
• DC Resistance. External Conductor 4.33 Ohms/mi | 4.328 Ohms/mi
• DC test voltage: 4000 V
• Inductance: 0.190 μH/m | 0.058 μH/ft
• Insulation resistance: 160,900 MΩ/mi
• Jacket spark test voltage (rms): 8000 V
• Operating frequency band: 1 - 8800 mHz
• Peak power: 40.0 kW
• Velocity: 88%
