Gateway UMG 300 Modular with 3 slots for modules or E1, GSM 2G and 3G, FXS and / or FXO cards, up to 46 channels
- Brand / Vendor: KHOMP
- Hardware Model / MPN: UMGMODULAR300
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Hardware
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: KHOMP | Model / MPN: UMGMODULAR300
Availability: Standard Supplier Lead Time
UMG Modular 300 is a user media gateway, ideal for small and medium businesses that wish to have VoIP telephony benefits integrated with E1, GSM 2G and 3G, FXS telephony links, and thus interconnect their digital, analog, mobile and IP networks with their telephony platform.
Key Features and Benefits
Modularity: 3 slots for the desired combination:
- 1 E1 (30 channels)
- 2 GSM (up to 6 GSM channels), which can be as follows:
- – 2G Quad Band: 850/900/1800/1900 MHz or
- – 3G Six Band 800/850/900/1700/1900/2100 MHz
- 4 FXO (up to 12 FXO)
- 8 FXS (up to 24 FXS)
- Maximum of 46 channels per product
- 2 Gigabit Ethernet ports
- Connection with up to 2 different VoIP carriers
- Up to 10 VoIP accounts
- VoIP channels: 1 SIP channel for each TDM channel, adding up to a maximum of 46 SIP channels
- Graphic OLED display allowing for important equipment information monitoring (optional)
- A user-friendly Web interface for configuring, monitoring and diagnosis
- R2, ISDN, and SIP signaling support
- Compatible with G.711 (A-law and μ-law), G.729A and T.38 (fax)
- SNMP support
- Customizable billing through CDR
Applications
- Corporate use: ideal for call routing between headquarters and branches though IP network
- Use in VoIP carriers: recommended to provide to your subscribers
- Call forwarding to lower-cost routes
- Call routing on the basis of prefix
- Loyalty to carrier

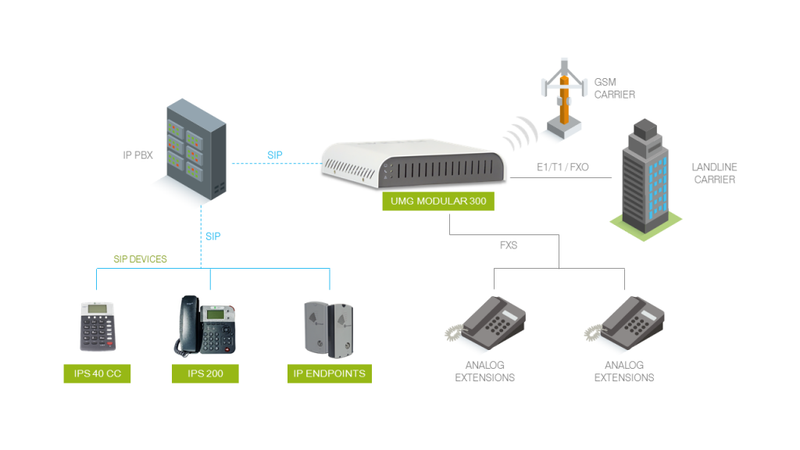

Integration with IP PBX and VoIP Carrier
