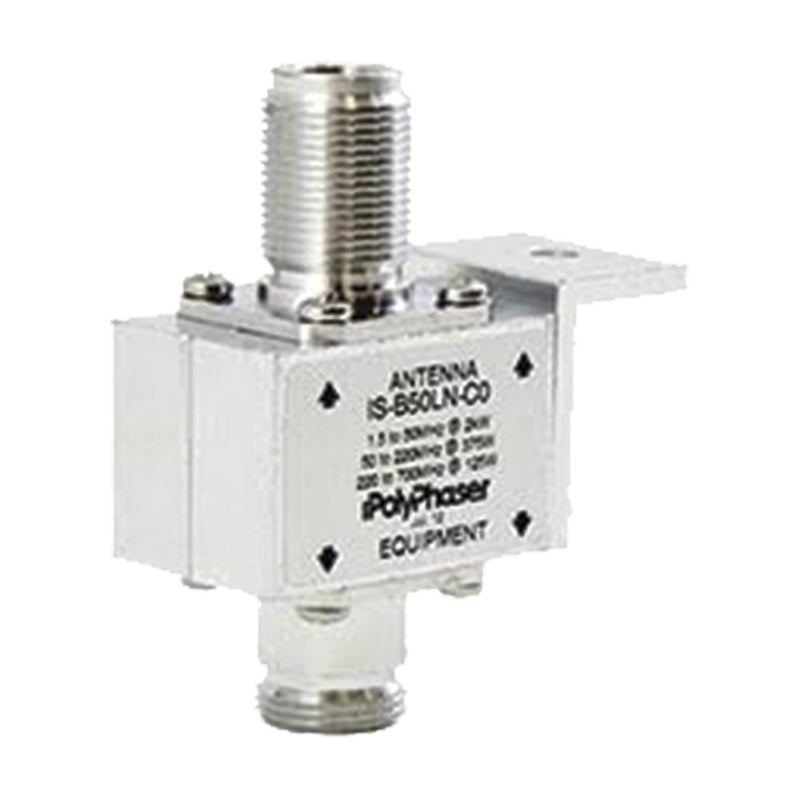

10 MHz To 1 GHz Coaxial Protector With DC Block And N Female Connectors
- Brand / Vendor: POLYPHASER
- Hardware Model / MPN: IS-B50LN-C0
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Bulkhead mount, dc block, single transmitter coaxial lightning protection for 10 MHz to 1 GHz with N female surge side and N female protected side connectors
Type
DC Block
Mount Type
Bulkhead mount
PIM Rated
N
Standards
CE Compliant, RoHS Compliant
Connector
N
Surge Side Connector
N Female
Protected Side Connector
N Female
Frequency Range
10MHz to 1GHz
Turn On Voltage
600 Vdc ±20%
RF Power
1.5kW @ 10 to 50MHz, 375W @ 50 to 220MHz, 125W @ 220 to 700MHz, 50W @ 700 to 1000MHz
VSWR
≤ 1.1 to 1 OVER FREQUENCY RANGE
Insertion Loss
≤ 0.1dB OVER FREQUENCY RANGE
Protocol/Application
Two Way Radio and Scada
