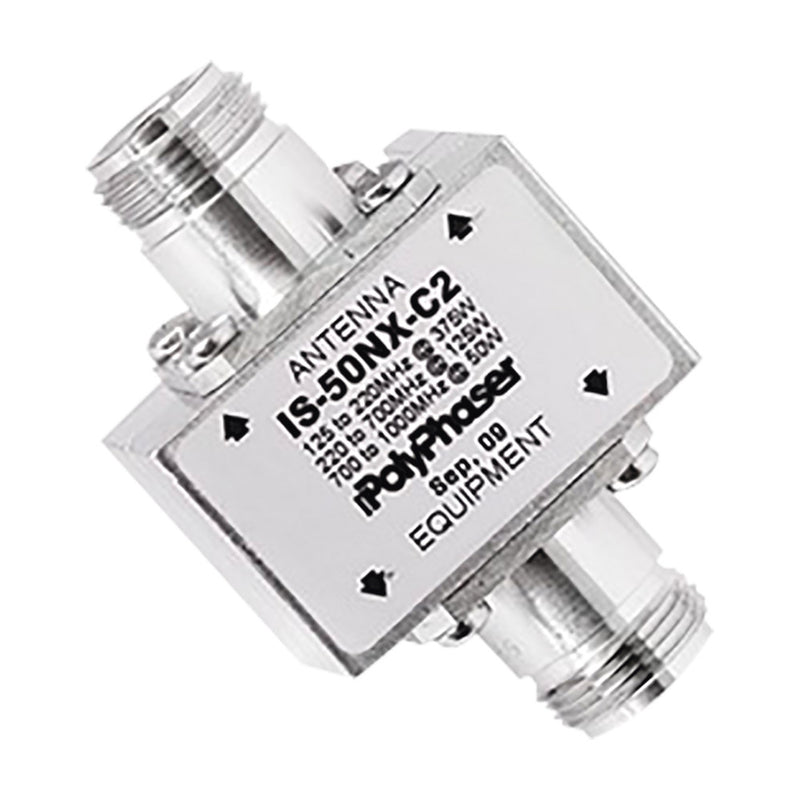

DC RF Coaxial Protector For 125 - 1000 MHz With Side Eyebrow and N Female Connectors on Both Sides, 50 Ω
- Brand / Vendor: POLYPHASER
- Hardware Model / MPN: IS-50NX-C2
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Features
- Type. DC Block
- Mount Type: Flange Mount
- PIM Rated: N
- Standards: CE Compliant, RoHS Compliant
- Connector: N
- Surge Side Connector: N Female
- Protected Side Connector: N Female
- Frequency Range: 125 MHz to 1.0 GHz
- Turn On Voltage: 600 Vdc ± 20 %
- RF Power: 125 to 220 MHz @ 375 W, 220 to 700 MHz @ 125 W, 700 to 1000 MHz @ 50 W
- VSWR: ≤1.1:1 Over Frequency Range
- Insertion Loss: ≤0.1 dB Over Frequency Range
- Protocol/Application: Two Way Radio, SCADA Applications
- Frequency range: 125 - 1000 MHz.
- Power: VHF (375W), UHF (125 W), 700-1000 MHz (50 W).
- Insertion loss: ≤ 0.1 dB.
- Power flow: ≤ 220 μJ.
- Connectors: N-Female.
