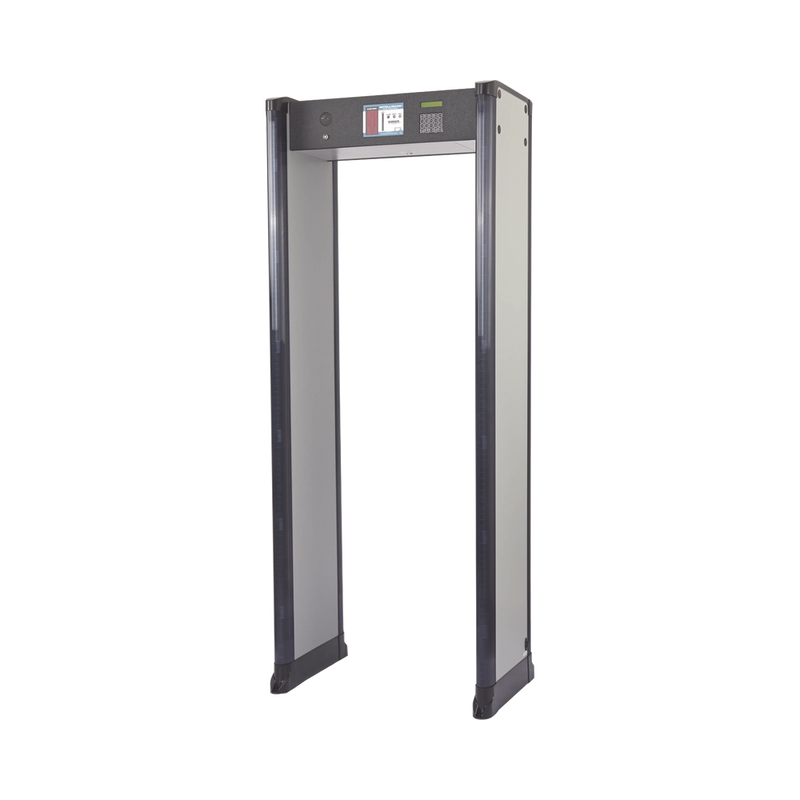

Security Metal Detector Screening, 6 Independent Zones (FAA)
- Brand / Vendor: RANGER SECURITY DETECTORS
- Hardware Model / MPN: INTELL-26-ZIR
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
General Description
The Ranger Intelliscan Six-Zone uses a unique multiple continuous wave sensor, an integrated processor analyzes data from multiple sensors individually. It features an alarm display panel which shows arch opening, displaying six separate detection zones. The Intelliscan Six-Zone uses self-diagnostics that monitor environmental electronics, interference conditions and metal overload. The alarm display panel includes a twelve-segment signal strength bar graph that provides an indication of object size and strength. Intelliscan eliminates common detector problems such as false alarms, uneven detection, external interference and inconsistent operation.
- Independent zone adjustment.
- Continuous wave measurement technique.
- Self-diagnostic system.
- Keyboard for programming.
- Base for floor mounting.
- On/off key switch.
- Master code for programming access.
- Operating system status LED.
- Infrared sensor to avoid false alarms.
- Operating temperature from 0 to 55°C
- Humidity 95% non-condensing.
- Power supply: 110 VAC
- Consumption: 12 W.
- Dimensions: 90 x 220 x 58 cm.
- Weight: 65.45 kg.
The Intelliscan Six-Zone is certified by the U.S. Federal Aviation Administration and meets or exceeds all requirements of the National Institute of Law Enforcement and Criminal Justice Standard (N.I.L.E.C.J.) 0601.00 security levels 1-5.
Applications:
Very useful in airports, businesses, stores, schools, hotels, hospitals, industries, exhibitions, casinos and civic events. Primarily for weapon detection and protection of your metal assets.
Available Options
Options on request, add the following models to the quote:
- Option BU Battery backup power included (Up to 8 hours).
- Option W Weather-resistant design, supports torrential rain.
- Option R Wheel kit for easy mobility.
- Option EJ Elegant executive design, with Oak wood finishes (Cherry or vanilla colors).
- Option CD People entry counter.
- Option CDD People entry and exit counter.
- Option DR Remote display for Remote Monitoring (up to 30 m).
- Option SW(requires option N). RANGERNET software for PC monitoring.
- Option N Includes RJ45 connection for LAN network connection.
Weather-equipped units can withstand rain, dust, and cold and hot temperatures.
2 Year Warranty
For more information call us!
Ask the engineering department about Detection Levels they support.
NOTE: WHEN INSTALLING, VERIFY THE SERIAL NUMBERS ON THE SIDES WITH THE MAIN UNIT, THESE MUST MATCH FOR PROPER EQUIPMENT OPERATION.
