Item#: TR-2504 Browsing History
IDIS »
2 MP DVR | 4 Channel | Supports up to 5 MP | Alarm and Audio Input / Output | 2 Way Audio
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All IDIS Products
⚡ SPECIAL DEAL • 17% OFF • Direct EPCOM USA Warehouse Stock

2 MP DVR | 4 Channel | Supports up to 5 MP | Alarm and Audio Input / Output | 2 Way Audio

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: IDIS
  • Hardware Model / MPN: TR-2504
  • Deal Status: ⚡ Special Deal (17% OFF)
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: CCTV & Video
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
⚡ SPECIAL DEAL 17% OFF
Deal expires in: 00:00:00
EPCOM Official Warehouse Promotional Price
$436.83 $526.99
Save: $90.16 (17% OFF)
218+ in stock • Ships from USA Warehouses
Volume Contractor Pricing:
1 - 4 units $436.83 Standard
5 - 9 units $414.99 Save 5%
10+ units $393.15 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$436.83
Standard Catalog
5 – 9 Units
$410.62
Save ~6%
10+ Units
$384.41
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing

Brand: IDIS | Model / MPN: TR-2504

Availability: Immediate Dispatch from USA Warehouses



Main Features:

  • Supports Multi-Standard Analog Camera
  • Up to 120ips Full HD recording
  • H.265 encoding, Intelligent Codec Support
  • Up to 5MP resolution support
  • UHD Display with HDMI output
  • Full HD Display with HDMI and VGA output
  • Long transmission distance over coax cable
  • Supports OSD control over Coax
  • Expandable up to 12TB using 2 SATA interfaces
  • Supports one click network configuration through FEN service
  • NDAA Compliant
Specifications:

Video

  • Video Inputs: 4 BNC (Multistandard Analog)
  • Supported Camera Types: 5MP20, 5MP12, 4MP30, 4MP25, 4MP15, 3MP18, 1080P30, 1080P25, 720P30, 720P25, CVBS(NTSC/PAL)
  • Video Outputs: 1 HDMI, 1 VGA
  • Display Resolution:
  • HDMI : 3840 x 2160, 1920 x 1080, 1280 x 1024
  • VGA : 1920 x 1080, 1280 x 1024

Recording

  • Recording Resolution: 5MP, 4MP, 3MP, 1920×1080, 1280×720, 960×576, 960×480, 720×576, 720×480, 960×288, 960×240, 640×360, 720×288, 720×240, 480×288, 480×240, 360×288, 360×240
  • Frame Rate: 120ips@1080P, 72ips@3MP, 60ips@4MP, 40ips@5MP
  • Compression: H.265, H.264, Intelligent Codec
    • Recording Mode: Time-Lapse, Event, Pre-Event, Panic
    • Trigger Events: Alarm in, Motion detection, Video loss, Text-in

Storage

  • HDD: SATA x2
  • Total Capacity: 12TB=6TB x2
  • Data Export Device: USB HDD, USB Stick
General:
  • Operating System: Embedded Linux

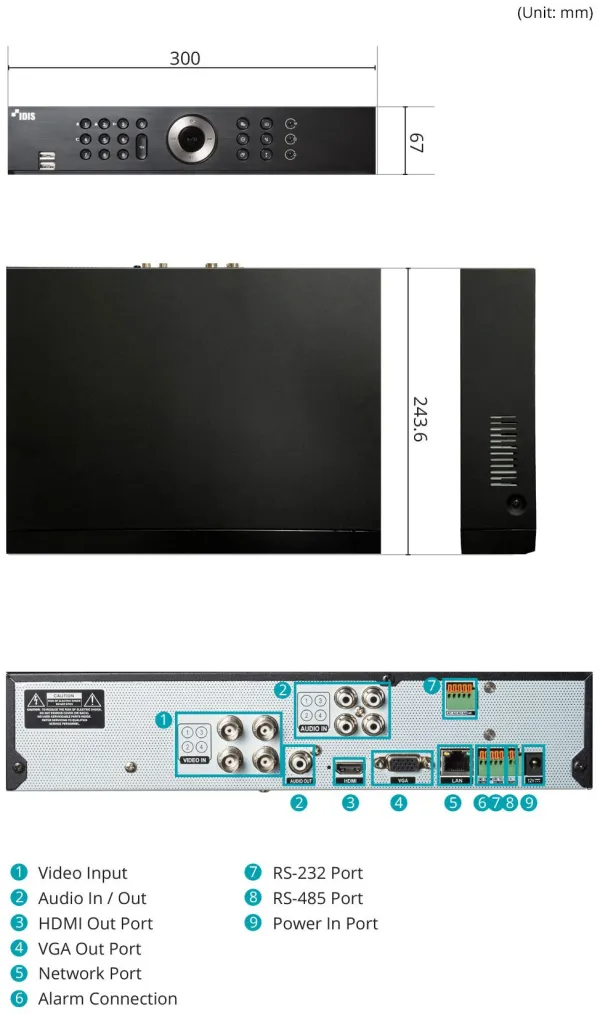

  • UNIT Dimensions (W x H x D): 300mm x 67mm x 243.6 mm (11.8″ x 2.6″ x 9.6″)
  • Unit Weight: 3.0kg (with 2 2TB HDD)
  • Working Temperature: 0°C to 40°C (32℉ ~ 104℉)
  • Operating Humidity: 0% ~ 90%
  • Power Input: Adaptor Input : 100-240V AC, 50/60Hz, 1.5A, Output : 12V DC, 5A
  • Power Consumption: 12V=, 1.7A, 20.4W
  • Approvals: FCC, CE, KC
  • Sequence: Yes
  • Multiscreen on Spot Monitor: No
  • Color Control: brightness, contrast, saturation, hue





• Free Ground Shipping: Automatically applied to all orders of $500.00 USD and above across the 48 Contiguous United States.

• Same-Day Dispatch: Orders placed before 2:00 PM CST (Mon–Fri) dispatch the same business day from our Texas & Florida distribution hubs.

• Carrier & Transit: UPS Ground / FedEx Ground (typically 2–5 business days).

• 100% Genuine Gear: Brand new, factory-sealed hardware directly sourced via authorized manufacturer channels.

• Full Factory Warranty: Covered by standard manufacturer warranty and RMA replacement support.

• 30-Day Hassle-Free Returns: Unopened and factory-sealed equipment eligible for return within 30 days of delivery.
