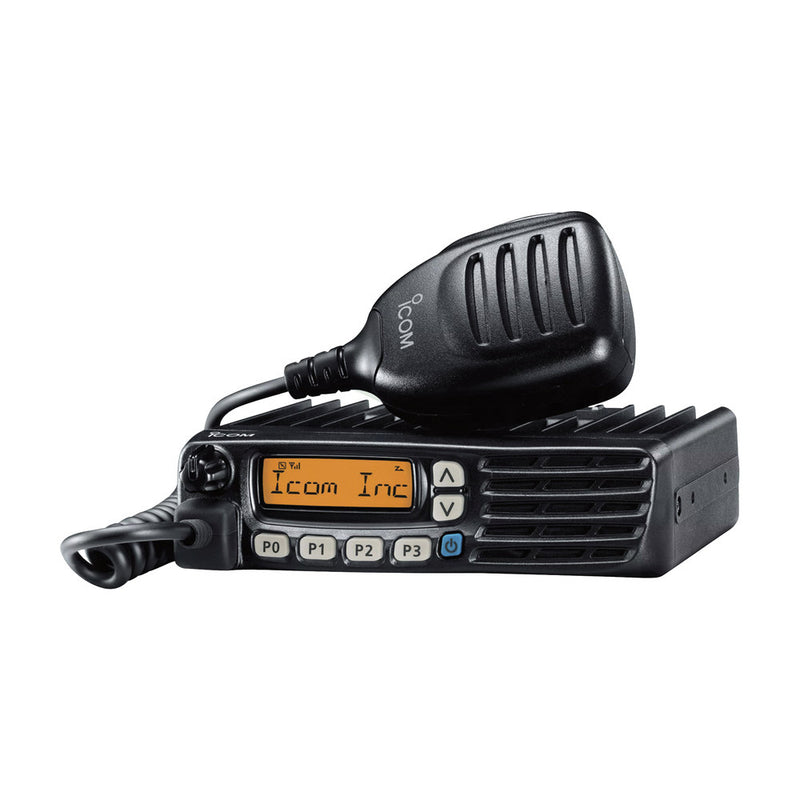

Analog Mobile Radio, 45 W, 400-470MHz, 128 Channels with 8 Character Display comes with MDC-1200 Signaling, 5 Tones, DTMF, Microphone, power cable and mounting bracket included.
- Brand / Vendor: ICOM
- Hardware Model / MPN: F6021 56 USA
- Deal Status: β‘ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: ICOM | Model / MPN: F6021 56 USA
Availability: Immediate Dispatch from USA Warehouses
Frequency rangeΒ 400-470MHz
Features:
β’ Display of 8 alphanumeric characters
β’ Channel browser normal/priority
β’ Anti-reading lock
β’ Password for switch-on, reading and writing
β’ Panic button
β’ Programmable minimum volume level
β’ Port for optional cards (encryptor)
β’ Accessory port for repeater connection or other application (req. OPC-2078 and/or OPC-1939)
β’ Programmable via software CS-F3020_5010_5020
β’ 128 channels
β’ 45 W (UHF)
5-tones signaling
β’ PTT-ID
β’ On screen ID (ANI)
β’ Selective call
β’ Group call
β’ Remote auto transmission
β’ Emergency call
β’ Radio remote monitoring (Radio check)
β’ Radio activation and deactivation via air
DTMF signaling:
β’ PTT-ID
β’ On screen ID (ANI) eq. UT-108R
β’ Emergency call
β’ PTT-ID
β’ On screen id (5 alias)
β’ Radio activation and deactivation via air
β’ Radio remote monitoring (Radio check)
β’ Smart emergency call
β’ Includes power cord, mic. (HM-152)Β and mounting
General:
β’ Frequency coverage: 400-470 MHz, 540-512 MHzΒ
β’ Number of channels: 128 / 8 zones
β’ Channel spacing: 12.5/25 kHz, 15/30 kHz
β’ PLL channel step: 2.5 kHz, 3.125 kHz (VHF)
β’ Power supply requirement: 13.6 Vdc
β’ Antenna impedance: 50Ξ© (SO-239)
β’ Operating temperature: -22ΒΊ to 140ΒΊ FΒ
β’ Current drain (approx.):Β
-Tx (50W/45W):: 14.0 A
-Rx Audio max.:: 1.2 A
-Standby:: 300 mA
β’ Dimensions: 5 29/32 x 1 9/16 x 6 19/32β in.
β’ Weight: 2.4 lb
Includes:
β’ HM-152 mic
β’ OPC-1132A power chord
β’ Bracket
β’ Microphone clip
β’ Approved by the FCC and FCC
β’ Manufactured in an environment ISO 9001:2008
β’ Meets military standards MIL-STD 810 C, D, E, and F
*3 Year warranty
