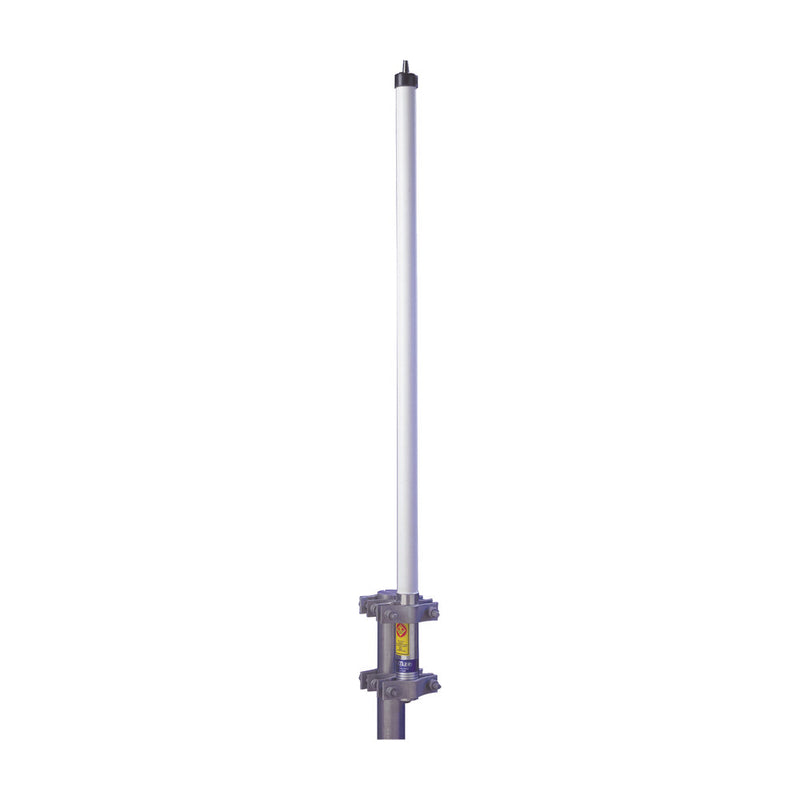

UHF Base Antenna, Fiber Glass, Frequency Range 450 - 470 MHz,10 dB Gain, HX Series for Extreme Climates
- Brand / Vendor: HUSTLER
- Hardware Model / MPN: HX10-45070
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
• Frequency Range: 406-512 MHz.
• Gain: 10 dBd (12.15 dBi)
• Bandwidth: 20 MHz.
• V.S.W.R.: 1.5:1
• Polarization: Vertical
• Power Rating: 700 Watts Maximum Continuous
• Termination: Type N Female or 7/16
• Vertical Aperture
(3 dB from max): 6 Degrees
• Weight: 27 lb. (12.2 kg.)
• Wind Load
(Lateral thrust @ 100 mph): 100 lb. (444 N)
• Wind Area
(flat plate equivalent): 2.1 sq. ft. (0.19 sq.m.)
• Maximum Wind Speed: 160 mph (257 kph.)
•Length: 17.71 ft. (5.4m)
• Material:
- Feed Lines: Copper
- Radiators: Copper
• Color: Radome White
• Mounting
(top or side mount): Galvanized steel mounting clamps (3 sets) permit mounting the antenna to a support pipe up to 3.0' O.D.
• Lightning Protection: Direct Ground
• Accessories: Reflector Tube (adds 3 dBb directional) and Side Mount Kit optional.
