VHF Base Antenna / Low Angle Radiation / 167-174 MHz / 7 dBd / 800 watts / Aluminum and Fiberglass / Self-Supporting
- Brand / Vendor: HUSTLER
- Hardware Model / MPN: G7-150-4
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: HUSTLER | Model / MPN: G7-150-4
Availability: Immediate Dispatch from USA Warehouses
General Description
The G7 series 150 MHz antenna is designed for fixed or repeater applications, offering low-angle radiation for optimal signal performance. It is constructed with high-strength aluminum and fiberglass, featuring a fully self-supporting design that requires no additional support. The antenna provides a gain of 7 dBd with a maximum input power of 800 watts FM. It includes integrated lightning protection through shunt-fed direct grounding and is rated for wind survival up to 100 mph (161 km/h).
Main Features
- Maximum input power: 800 watts FM
- Gain: 7 dBd
- VSWR: 6 MHz for 2:1, 3 MHz under 1.5:1
- Impedance: 50 ohms nominal
- Lightning protection: Shunt-fed - Direct ground
- Low-angle radiation for optimal signal coverage
- Fully self-supporting design
- Termination: Type N female
- Mounting compatibility up to 2 inches
- Wind survival: 100 mph (161 km/h)
Performance
- Frequency range: 167-174 MHz
- Gain: 7 dBd
- VSWR: 6 MHz for 2:1, 3 MHz under 1.5:1
- Impedance: 50 ohms nominal
- Maximum input power: 800 watts FM
- Low-angle radiation pattern
Physical & Electrical
- Construction: High-strength aluminum and fiberglass
- Design: Fully self-supporting
- Termination: Type N female
- Lightning protection: Shunt-fed - Direct ground
- Mounting compatibility: Up to 2 inches
- Wind survival: 100 mph (161 km/h)
- Maximum length: 4.25 m (13.9 ft)
Package Contents
- Antenna unit

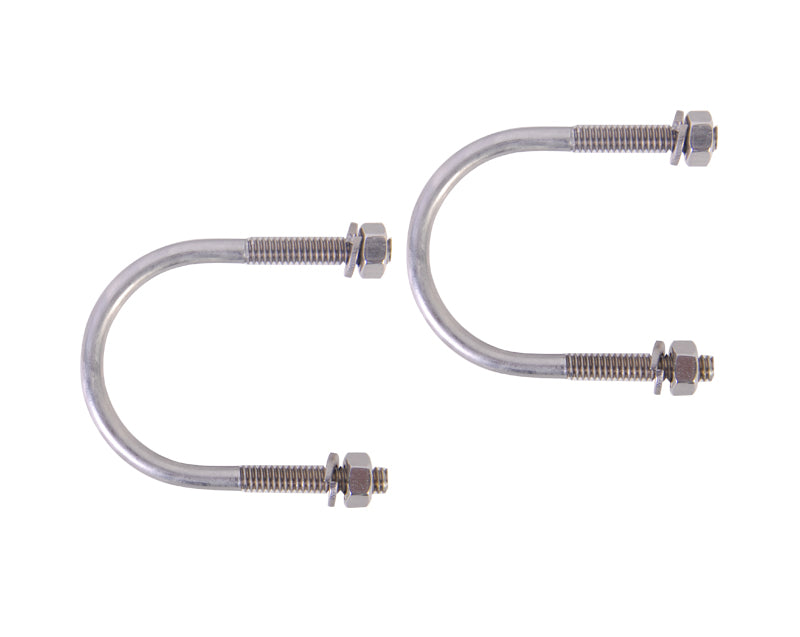

- Mounting accessories for masts up to 1 1/2 inches
Typical applications include fixed base stations and repeater installations in VHF communication systems.
