System:
• Programmable alphanumeric keypad, software Downloading.
• Maximum 8 keypad, supports alphanumeric, icons and touch screen keypads; 2 max
• Entry mode defined by the installer.
• 2 entry and exit programmable zones at different times.
• Auto Armed / Disarmed.
• 4204 up to 4 relays - 15mA
• Real-time-clock controlled and 254 event log capacity.
• 3 independent partitions, one can be set as a common area.
• Armed / Disarmed Confirmation.
• Siren Output: 2A
• Programmable voltage outputs: 2
• Phone line failure monitor.
• Auxiliar Power: 600 mA
• Power Input: 16 Vac.

Zones:
• 8 hard-wired Basic zones, up to 7 can be doubled or doubled-balanced.
• Supports 2-wire smoke detectors - up to 16 zones 1
• Supports 4-wire smoke detectors.
• Compatible with 5800-series wireless (up to 40 zones)
• 24 configurable zones.
• 16 additional zones for portable controls.
• Hardwired expansions: 4219 and 4229.
• 100% system wireless supervision.
• up to 60 m wireless series 5800.

Users:
• 48 user codes.
• 6 authority levels: integrator, master, standard, guest and armed only.
• Fast armed system.
• 5 armed levels: total, partial, night, instantaneous and maximum.


Includes:

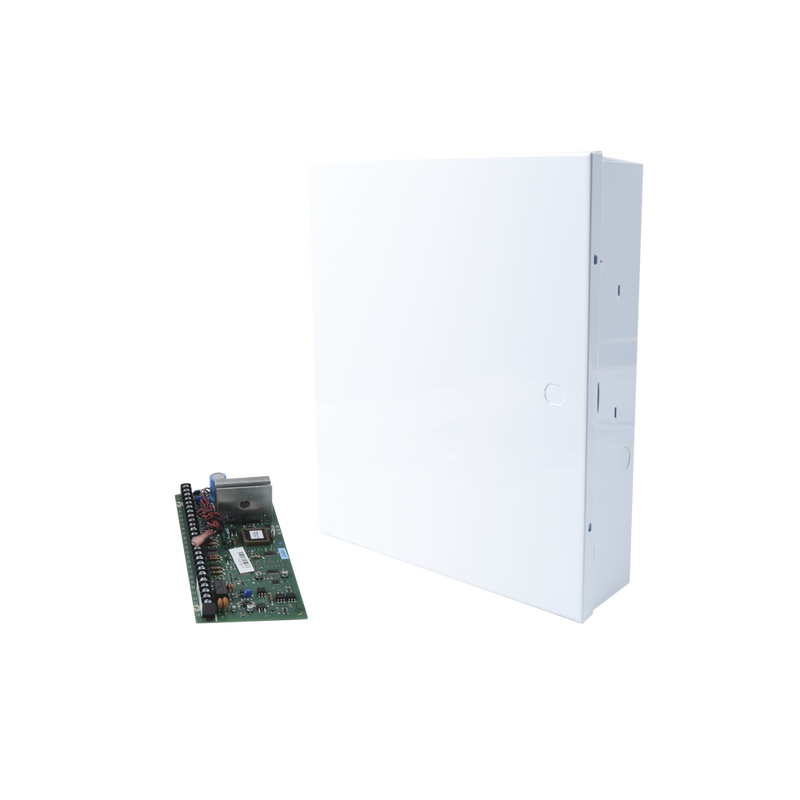

- Hibrid Panel 48 total zones.
- Cabinet

*1 Year Warranty.


**Compatible with Total Connect 5.2 and up.
