Item#: GSW-1601 Browsing History
PLANET »

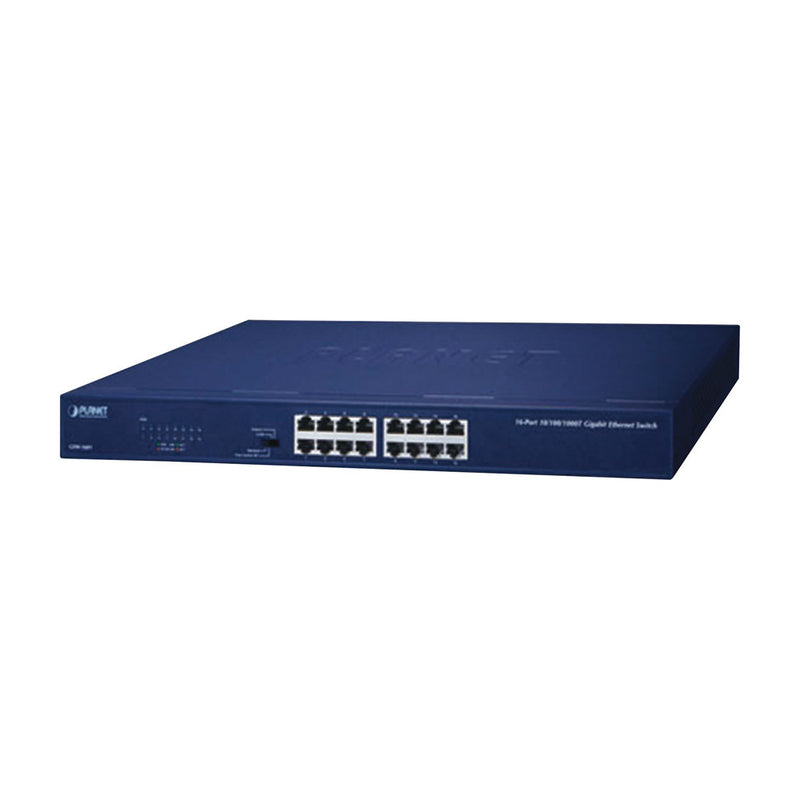

16-Port 10/100/1000 Mbps Gigabit Unmanaged Switch with Extended Mode for Distances up to 200m
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All PLANET Products
⚡ SPECIAL DEAL • 20% OFF • Direct EPCOM USA Warehouse Stock

16-Port 10/100/1000 Mbps Gigabit Unmanaged Switch with Extended Mode for Distances up to 200m

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: PLANET
  • Hardware Model / MPN: GSW-1601
  • Deal Status: ⚡ Special Deal (20% OFF)
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Networking
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
⚡ SPECIAL DEAL 20% OFF
Deal expires in: 00:00:00
EPCOM Official Warehouse Promotional Price
$110.94 $138.68
Save: $27.74 (20% OFF)
159+ in stock • Ships from USA Warehouses
Volume Contractor Pricing:
1 - 4 units $110.94 Standard
5 - 9 units $105.39 Save 5%
10+ units $99.85 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$110.94
Standard Catalog
5 – 9 Units
$104.28
Save ~6%
10+ Units
$97.63
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing

                                                           Plug & Play      Autonegociación       10M/100M/1000M      MARCO gigante      MDI automático/MDI-X











VLAN Isolation Mode

VLAN operation mode features port-based VLAN function that can help prevent the connected clients' multicast or broadcast storm from influencing each other.







Extend Mode

Extend operation mode, operates on a per-port basis at 10Mbps duplex operation but can transmit data over a distance of up to 200 meters overcoming the 100m limit on Ethernet UTP cable.





Hardware Specifications
Hardware Version 9
10/100/1000BASE-T MDI/MDIX Ports
 16
Throughput (packet per second) 23,8Mpps
Switch fabric 32 Gbps
Weight 1,8 kg
Power Consumption/Dissipation 9,4 Watts/32 BTU
Power Requirements 100~240 V CA, 0,16 A, 50-60 Hz
Dimensions (W x D x H)
 440 x 208 x 44 mm, 1U of height
Switch Processing Scheme Store-and-Forward
Address Table 8K entries
Jumbo Packet Size 9K
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Dip switch

Operation mode selection:

Standard, Flow control off, VLAN, Extend　
Regulatory Compliance FCC Part 15 Class A, CE



Standards Compliance

 IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-Duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Operating Operating Temperature: 0~50 degrees C
Relative Humidity: 5% to 95% (non-condensing)
Storage temperature
 Temperature: -10~70 degrees C
Relative Humidity: 5% to 95% (non-condensing)



Package content

- 1 Switch GSW-1601

- 1 power supplu cable

- 2 mounting for rack

- 1 user manual

Warranty

3 Years
