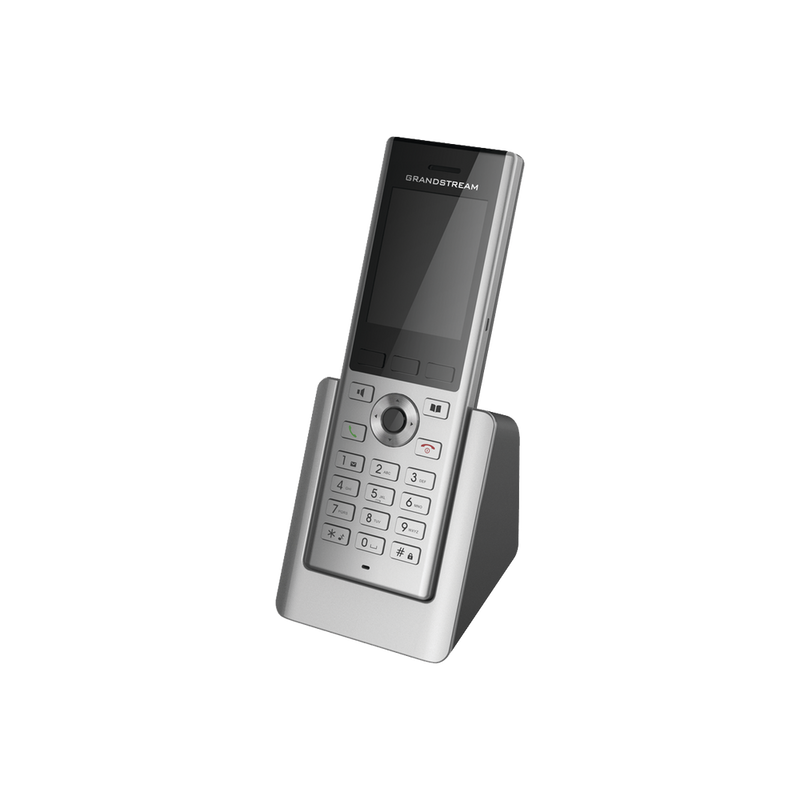

Enterprise Portable Wi-Fi Phone, Connectivity to the VoIP Network via Wi-Fi

The WP820 is a portable WiFi phone designed to suit a variety of SMB’s and vertical market applications, including retail, logistics, medical, and security. This powerful, portable WiFi phone comes equipped with integrated dual-band 802.11a/b/g/n WiFi support, advanced antenna design and roaming support, and integrated Bluetooth for pairing with headsets and mobile devices. By adding 7.5 hour talk time and HD voice with dual-MICs, the WP820 offers a powerful combination of features, mobility, and durability to suit all portable telephony needs.

Protocol/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6

Voice Codecs: Support for G.711µ/a, G.729A/B, G.722 (wide-band), iLBC, Opus, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO)

Graphic: 2.4 inch (240x320) TFT color LCD

Peripherals: 3 soft keys, dial, hangup, speakerphone, phonebook, backlit keypad, proximity sensor, accelerator, vibration motor, volume button, and navigation keys

Push-to-Talk: Customizable button for push-to-talk, panic call, and other related functions

Bluetooth: Yes, Bluetooth 4.2

Auxiliary Ports: 0.13' (3.5 mm) headset jack, Micro USB port for charging, dual-MIC, dual-color LED

Telephony: Hold, transfer, forward, 3-way audio conference, downloadable phonebook (XML, LDAP, up to 500 items), call waiting, call log (up to 100 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over, push to talk

Operating System: Android 7.0, supports custom Android apps that fit the phone’s screen/keyboard

Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control

HD Audio: Yes, both on handset and speakerphone with support for wideband audio, HAC supported

QoS: Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS

Multi-language: English, Arabic, Chinese, Czech, Dutch, German, French, Hebrew, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Turkish and more

Upgrade/Provisioning: Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file, manual upload, USB upgrade

Power & Green Energy Efficiency: Universal power adapter included Input: 100-240VAC; Output: +5VDC, 1A (5W) 1500mA Li-ion battery, 150h standby time and 7.5h talk time

Physical: Headset dimensions:  6.63 x 2.06 x 0.85' (168.5 x 52.5 x 21.8 mm) Charger cradle dimensions: 2.99 x 2.87 x 3.18' (76 x 73 x 81 mm) Handset weight: 0.35 lb (161g) Handset package weight (not including QIG): 1 lb (456g)

Temperature and Humidity: Operating Temperature: 32 to 113ºF (0 to 45ºC); Operating Humidity: 10-90% (non-condensing) Storage Temperature: -4 to 140 ºF (-20 to 60ºC); Storage Humidity: 10%-90% (non-condensing)

Package Contents: Handset unit, universal power supply, charger cradle, belt clip, 1 Li-ion battery, Quick Start Guide

Compliance: FCC, CE, RCM, EAC

* 1-year warranty
