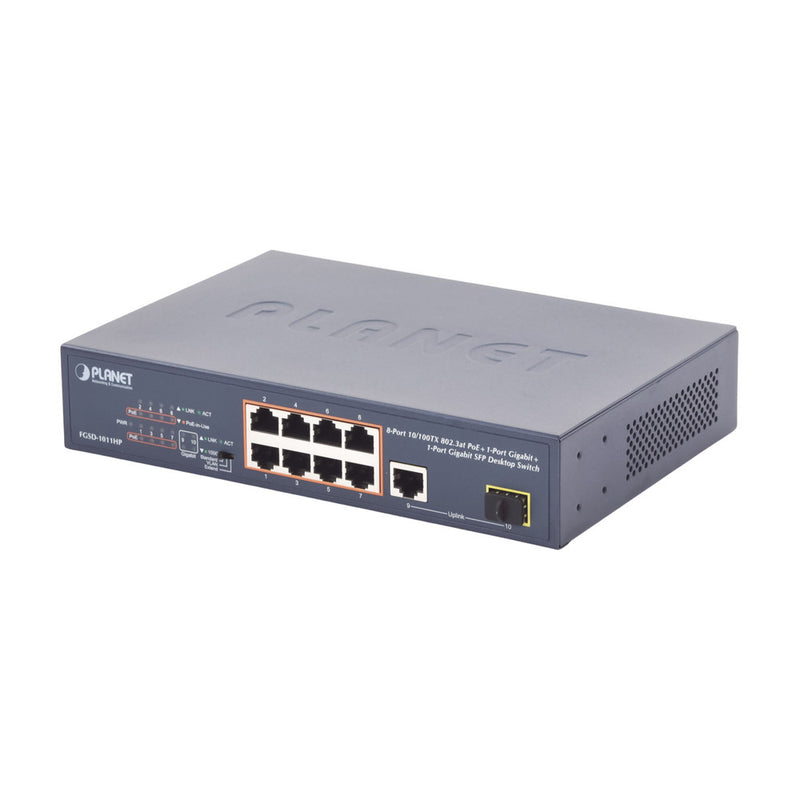

Unmanaged Switch 8 ports 10/100 PoE 802.3af/at, 120W PoE Budget, 1 Uplink Port 10/100/1000 and 1 SFP 100/1000
- Brand / Vendor: PLANET
- Hardware Model / MPN: FGSD-1011HP
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
The FGSD-1011HP, a new PLANET 802.3at PoE Fast Ethernet Switch family member, provides 8-port 10/100Mbps 802.3af/at Power over Ethernet, 1 Gigabit port, and 1 Gigabit SFP port with a total of 120 watts of PoE budget. Its power budget is more than enough for any network application with Fast Ethernet speed transmission. The eight 802.3af/at PoE ports feature PoE power injector function, which can drive 8 IEEE 802.3at compliant powered devices. The FGSD-1011HP also offers a simple, cost-effective, and non-blocking wire-speed performance. It has a 9-inch compact metal housing, suitable for desktop deployment in SOHO office or department network applications.
Physical Ports
- 8 ports 10/100Mbps Fast Ethernet
- 1 port 10/100/1000BASE-T Gigabit Ethernet
- 1 interface 1000BASE-X mini-GBIC SFP
PoE (Power over Ethernet)
- Complies with IEEE 802.3af/at PoE (Power over Ethernet) end-span
- Up to 8 devices powered IEEE 802.3af/ IEEE 802.3at
- Supports PoE powers up to 30 watts per PoE port
- 120-watt PoE budget
| Power Requirements | AC 100~240V, 2.5A max. |
| Power Consumption | 135 watts, 463.2 BTU |
| Dimensions (W x D x H) | 220 x 150 x 44 mm |
| Weight | 1220g |
