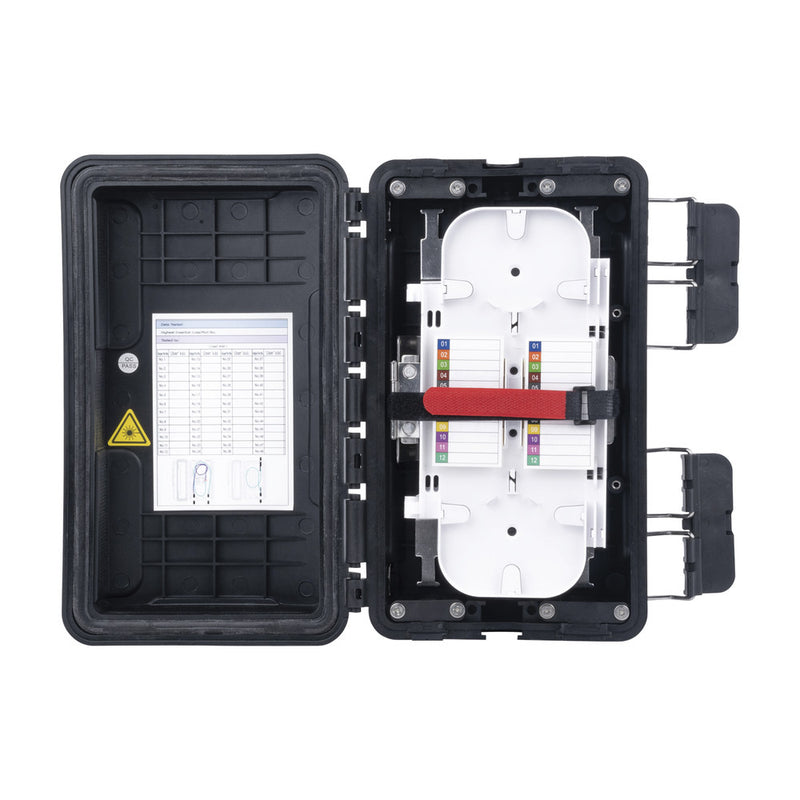

Serial Fiber Distribution Box, 96 Splices, IP65, Black Color
- Brand / Vendor: FIBERHOME
- Hardware Model / MPN: FDP-420F
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Structured Cabling
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
FDP420F is a subscriber optical fiber access box used to build at the first layer in the FTTH networks. It is designed for in-line applications to provide a protected access point between the feeder and distribution cables. This product can keep internal components away from outdoor environmental damage. Its flexible configuration supports 2 cables in and 2 cables out. 900um pigtail type optical splitter could be built-in and provide a mid-span function. IP65 performance is useful in harsh environments. The FDP420F series is suitable for the application of LCP in the distributed split PON architecture.
Features
- In-line application and easy installation
- Outdoor application and good UV resistant
- Numerous splice applications as mid-span, branch, or direct splice
- Support micro-splitter with splicing type
- High-strength material with good weather-fastness (PP+GF), flame retardant
- Support ADSS cable and self-support fiber cable
- Protection grade: IP65
- Dimensions (mm): 175.5 x 285 x 92
- 2 Big cable entrance ports (Ø8mm～Ø20mm)
- 2 Small cable entrance ports (Ø5mm～Ø16mm)
- Compatible with ADSS, Mini ADSS, and Mini Figure 8* fiber
*It is recommended to add more sealing mud in the cable entrance port when used with Mini Figure 8 fiber (OC-FIG8-06C, OC-FIG8-12C)
Includes:
- 1 Protection tube for naked fiber (4 m)
- 1 PVC tape
- 1 Spiral hose (2 m)
- 32 Cable tie (3*120 mm)
- 96 Heat shrinkable protection sleeve (60 mm)
- 1 Cleaning paper towels
- 1 Instruction Manual
- 2 Small Hose clamps (Ø10 - Ø16 mm)
- 2 Big Hose clamps (Ø16 - Ø25 mm)
- 1 Set of Hanging Cable pendants
- 1 Set of Hanging Line pendants
- 4 Waterproof mortar
