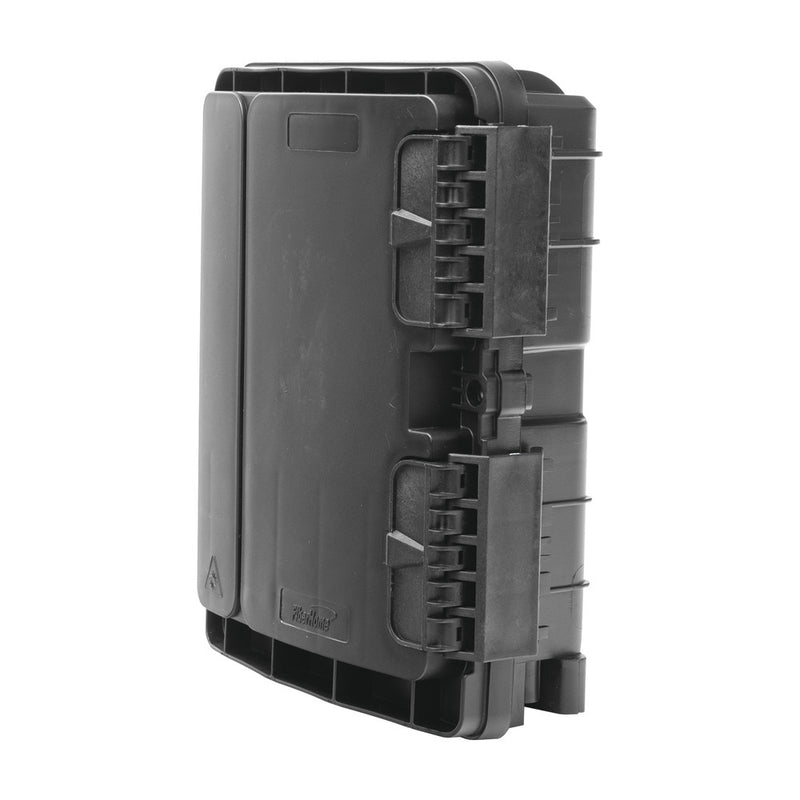

Fiber Distribution Box, 20 splices, IP65, Black, Outdoor, with 8 SC/APC adaptors and 1x8 splitter
- Brand / Vendor: FIBERHOME
- Hardware Model / MPN: FDP-420A
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Structured Cabling
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
FDP-420A is a subscriber optical fiber access box used to build an FTTH network. It is designed to provide a protected access point between the distribution and drop cables. This product can keep internal components away from outdoor environmental damage. The distribution input signal is spliced to the input of the optical splitter. The splitter outputs connect with terminated drop cable. FDP-420A series is suitable for the application both on LCP and NAP in the distributed split PON architecture.
Features
- Outdoor application and good UV resistant
- Numerous applications such as mid-span, branch, and direct splice
- High-strength material with good weather adaptability
- Protection level: IP65
- Apply to pole mounted (Includes accessory)
- Supports splitter installation '1x8 splitter included'
- Excellent sealing performance. It is compatible with different optical cable
- Dimension (mm): 305 x 248.5 x 120 (H x W x D)
- 16 drop cable ports
- 4 Distribution cable ports (Φ 5-16 mm)
- Black Color
- Operating temperature (°C): -40ºC ～ +65ºC
- Includes splitter 1x8 with SC/APC output connectors and 8 SC/APC adaptors
