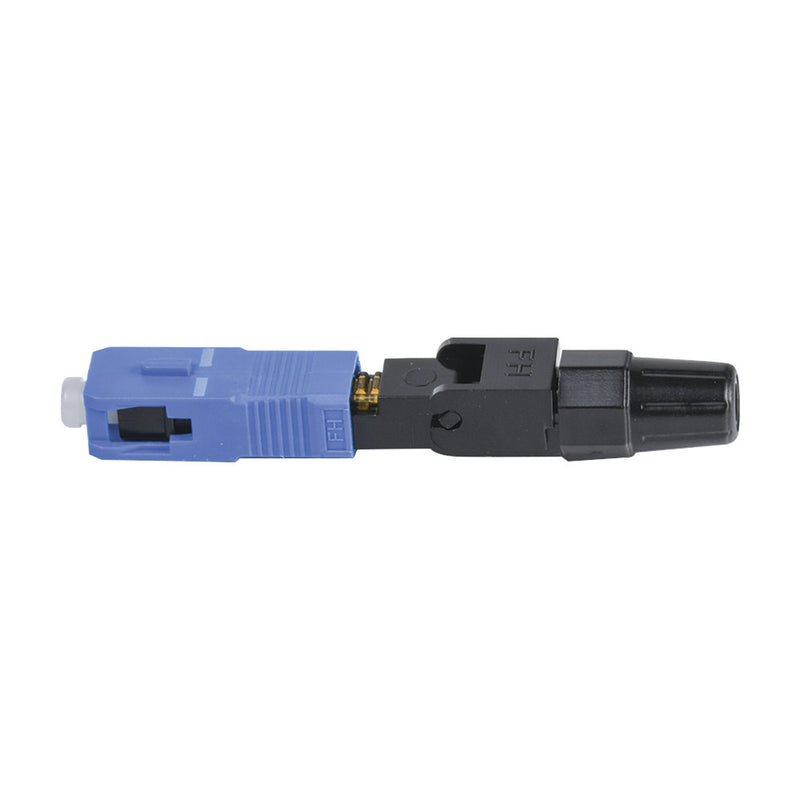

Field Assembly SC/UPC Singlemode Connector for fast installation, Pre-polished, re-assemblable
- Brand / Vendor: FIBERHOME
- Hardware Model / MPN: FASC-UPC
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Structured Cabling
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Field Assemble SC connectors enable fast, on-site installation for single-mode Fiber to FTTH drop cable connections without polishing. It is assembled on the cable sheath to eliminate bare fiber storage.
- Easy assembly, average assembly time ≤ 60s, one-time success rate reaches 98%
- The connection can be verified easily after the assembly
- No special tools are required to open and close the connector
- No need for a fusion splicer
Features:
- Connector Type: SC/UPC
- For 900µm Fiber or Drop Fiber
- Re-assemblable (up to 3 times)
-
Insertion loss:
- Maximum ≤ 0.50 dB
- Typical ≤ 0.30 dB
-
Return loss::
- UPC ≤ 50 dB
- APC ≤ 55 dB
- Working temperature: -40 ～ 70ºC
