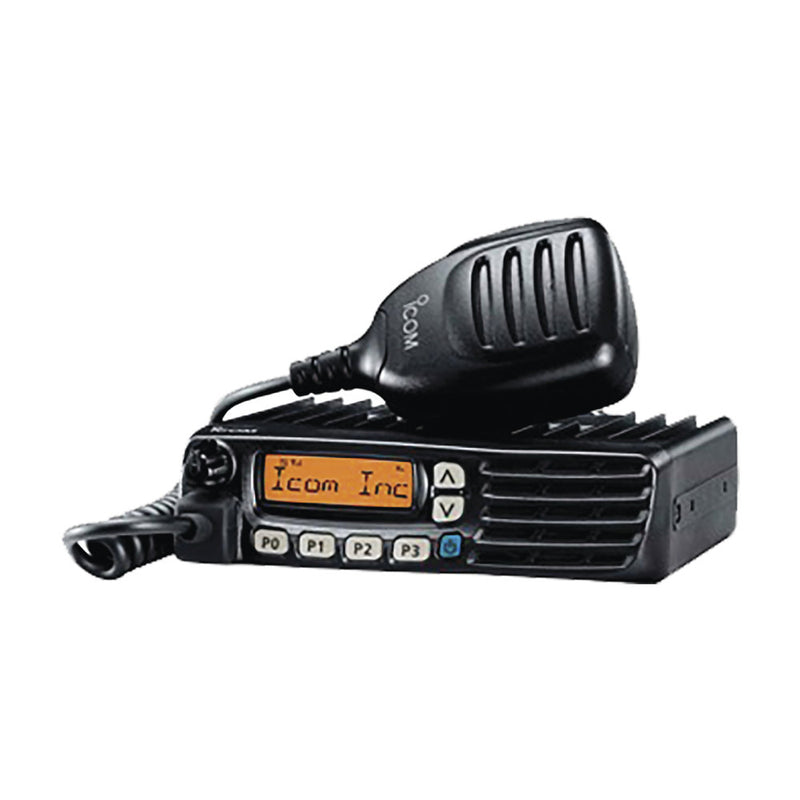

VHF Mobile Radio 136-174 MHz, 45 Watts, 128 Channels, 8 Zones, 6 Programmable Keys
- Brand / Vendor: ICOM
- Hardware Model / MPN: F5021 66 USA
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
The F5021 series is ideal for small-to-mid sized systems for public safety, large industry to light commercial users. The F5021 series offers multiple signaling, advanced scanning, improved external channel control capability and wide frequency coverage packed in a compact body. This rugged mobile easily exceeds your expectations with its reliable performance and communication quality.
- Channels: 128 channels, 8 zones
- Output power: 45W
- Frequencies: 136-174 MHz, 400-470MHz, 450-512MHz
- Programmable keys: 6
Front Mounted Speaker
4 watts (typ.) front mounted speakers delivers clear and loud audio. With the speaker facing the operator, audio can be clearly heard without impediment during operations.
MIL Grade Rugged Construction
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the F5021 series provides reliable operation over the long term in all manners of rugged environments.
Most Popular Signalings Built-in
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups, PTT ID and quiet stand-by when others are talking. The F5021 series has added CTCSS/DTCS high speed decode and 2-Tone decode accuracy.
MDC 1200 Compatible:
The following MDC features are available with the built-in MDC signaling.
- PTT ID (TX/RX)
- Radio check (RX)
- Radio stun (RX)
- Radio revive (RX)
- Emergency TX/RX (No ACK)
- 5 alias table (max.)
Multiple 2-Tone, Multiple 5-Tone:
Multiple 2-Tone, Multiple 5-Tone Up to ten 2-Tone and eight 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.
- Beep sound
- Answer back
- Scan
- Bell icon
- Radio stun/kill/revive
Lone Worker Function
When the radio is not operated for a present period, the radio sounds a beep and requires you to push any button. If the radio is still not operated for a specified wait period, an emergency signal automatically transmits and informs co-workers that something may have happened to the individual worker.
Tx Channel Setting and Talk Back Function
The Tx channel setting allows you to program a transmission channel while scanning. Start channel, last detected channel, priority and preprogrammed channels are selectable. Prior to the Tx channel setting, the talk back function allows you to talk on the last detected channel, while scanning resumes after a preset time. The user can easily make a quick response with this function.
Optional Unit
The 5021 series has a 40–pin option slot for adding an optional unit. Optional voice scrambler units, UT-109R or UT-110R provide secure private conversation. Optional DTMF decoder unit, UT-108R offers DTMF decode capability.
Other Features
- Wide/narrow (25/12.5kHz) channel spacing
- Embedded ESN
- ±2.5ppm frequency stability
- Microphone hanger action programmable
- 8 DTMF autodial memories
- Power-on password function
- Nuisance delete function
- Time-out-timer, lock-out penalty timer and more
Icom Taking it to the Extreme - Rugged Radios for Rugged Terrain
A South American resort implements an Icom repeater and radios for their HeliSkiing operation. Radios featured include the F4001, F50 and the F5021.
