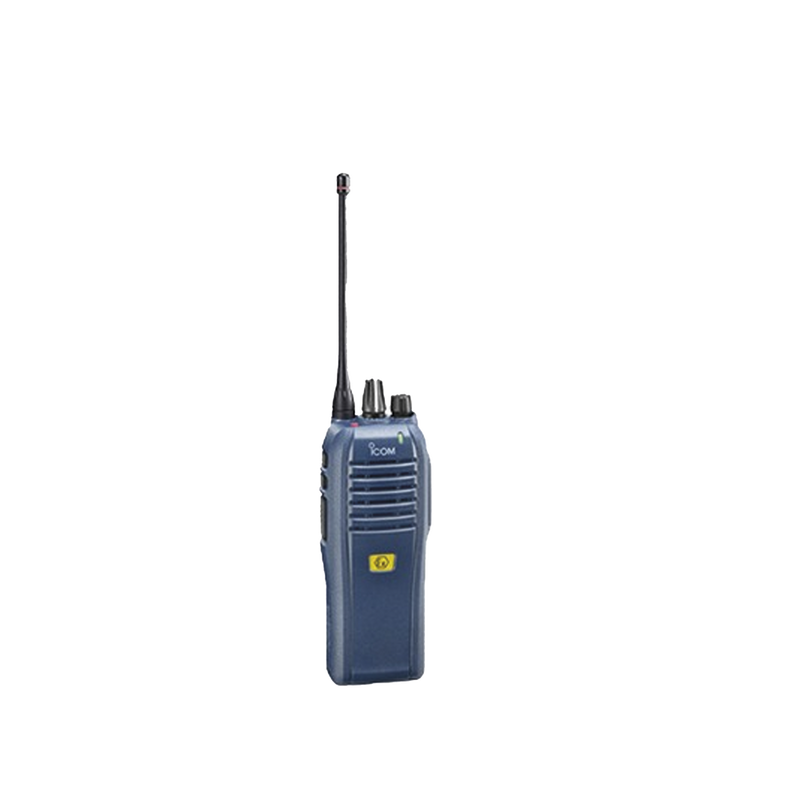

Portable Intrinsically Safe Radio, 1W, 136-174 MHz, 16 Channels, VHF Digital Transceivers (NXDN) IECEx/ATEX
- Brand / Vendor: ICOM
- Hardware Model / MPN: F3201DEX 14
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
IECEx/ATEX Intrinsically Safe IDAS VHF/UHF Portables
Safe and reliable communication is a must in potentially explosive atmospheres. The F3201DEX series operates in both analog and IDAS digital modes and can be used with any existing analog two-way radios. Digital functions include multi-site conventional and Type-D single-site trunking. These IDAS radios include a 15-bit digital voice scrambler and voting scan for multi-site conventional operation. The F3201DEX series should be your radio choice for use in hazardous environments.
Channels: 16 channels
Output Power: 1W
Frequency: 136-174 MHz
Waterproof Rating: IP67
Programmable Keys: 3
General Specifications
- Frequency coverage: 136-174 MHz
- Number of channels: 16 channels
- Type of emission: 11K0F3E, 8K50F3E, 4K00F1E/F1D
- Channel spacing: 12.5 / 6.25 kHz
- Power supply requirement: 7.4V DC nominal
- Current drain
- Tx High (VHF): 550mA
- Rx Max. audio/standby: 300mA (Internal SP)/110mA
- Antenna impedance: 5OΩ
- Operating temperature range: –20°C to +55°C; –4°F to +131°F
- Dimensions (proj. not included): 63×144×50 mm; 2.48×5.67×1.97 in (With BP-277EX)
- Weight:
- 258g; 9.1 oz (Radio only)
- 466g; 1.03 lb (With MB-94EX, BP-277EX & FA-SC55V)
ATEX Certifications
- Mining: I M2 Ex ib I Mb
- Gas: II 2G Ex ib IIC T4Gb
- Dust: II 2D Ex ib IIIC T110°C Db
- –20°C≤Ta≤+55°C
- EN IEC 60079-0 (2018), EN 60079-11 (2012)
IP67 Dust-tight & Waterproof Protection
The IC-F3201DEX/F4201DEX provides rugged protection against dust and water that is equivalent to IP67. The IC-F3201DEX/F4201DEX can withstand 1m depth of water for 30 minutes and its dust-tight construction shuts out powder dust, sand and other objects.
