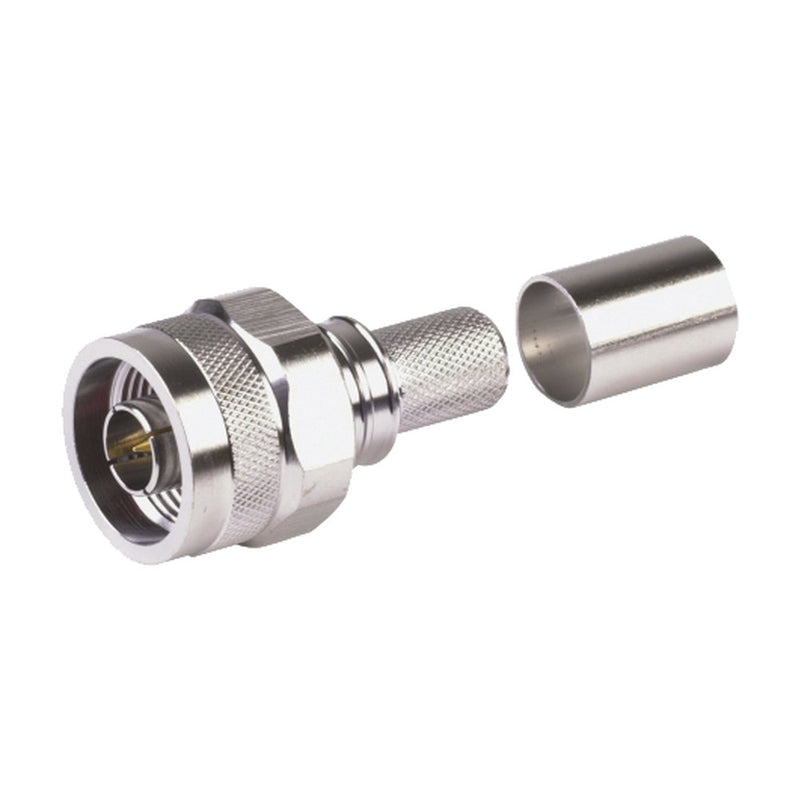

N Male Crimp Connector, Non-Solder Pin
- Brand / Vendor: Times Microwave
- Hardware Model / MPN: EZ-400-NM-HX
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
N Male Crimp Connector with Captive Pin for LMR-400 / RG-8 Cables
This EZ-series N male connector from Times Microwave is designed for crimp termination on low-loss coaxial cables including LMR-400, RG-8, Belden 9913, CNT400, and RG8USYS. The captive pin design eliminates soldering requirements, reducing installation time and improving field reliability. The brass inner and outer conductors with PTFE insulator maintain stable 50-ohm impedance across the operating bandwidth. The foldable (pleated) braid compression mechanism ensures consistent electrical contact and mechanical grip on the cable shield.
Main Features
- N male connector, EZ series with captive non-solder pin
- Compatible with LMR-400, RG-8, Belden 9913, CNT400, RG8USYS
- 50-ohm impedance for RF and wireless communication systems
- PTFE insulator for thermal and electrical stability
- Brass inner and outer conductors
- Foldable crimp design for simplified field installation
Electrical & Performance
- Impedance: 50 Ohms
- Insulator: PTFE
Materials & Construction
- Inner Conductor: Brass
- Outer Conductor: Brass
- Pin: Captive (non-solder)
Compatibility
- LMR-400
- RG-8
- Belden 9913
- CNT400
- RG8USYS
Typical applications: base station antenna connections, RF transmission lines, wireless infrastructure, and low-loss coaxial cable assemblies in commercial and professional communication systems.
