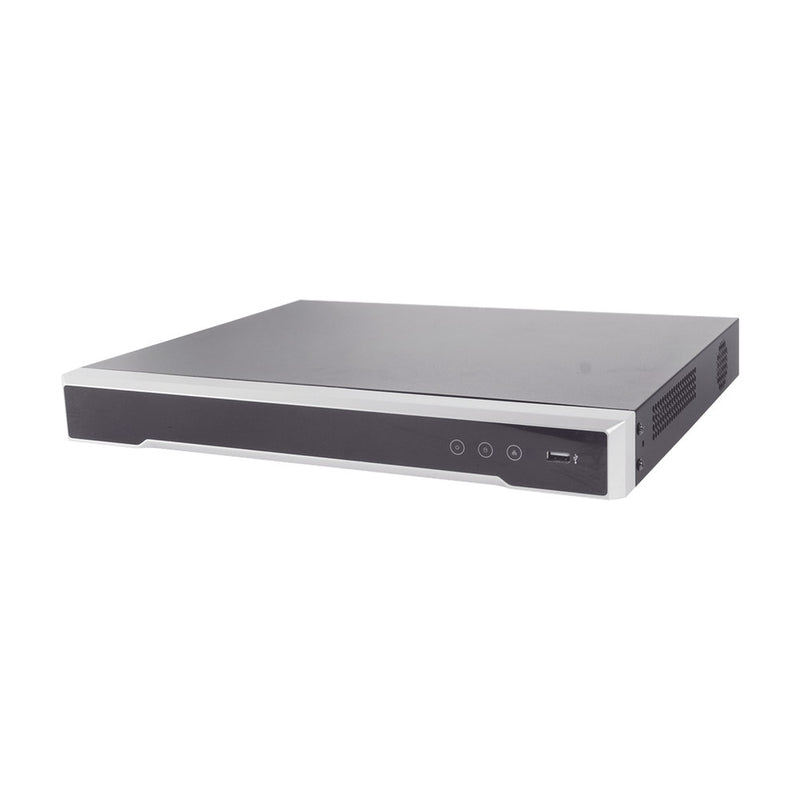

8 Megapixel DVR (4K) / 16 Channels TURBOHD + 16 IP Channels / 2 Hard Disk Bays / Coaxitron Audio / Avoid False Alarms / Video Output in 4K / Alarm input and output
- Brand / Vendor: EPCOM PROFESSIONAL
- Hardware Model / MPN: EV-8016TURBO-D(E)
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Video Surveillance
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
- It allows you to turn off analog TURBOHD channels and be able to place IP cameras on all your channels, we can place up to 32 IP cameras in total. An additional IP channel is generated for each TURBOHD analog channel that is turned off.
- PENTAHIBRYD recorder: HD-TVI / HD-CVI / Analog / IP / AHD.
- Multi-site client software with up to 64 channels (iVMS-4200).
- Compatible with Hik-Connect P2P / DynDNS / No-IP.
- Advanced Functions: Line crossing detection & intrusion detection.
Compression and resolution:
- Compression: H.265+ / H.265 / H.264+ / H.264.
- Supports 16 channels TURBOHD / analogs + 16 IP channel = 32 total channels.
- HD-TVI: 8 MP @ 8fps / 5 MP @ 12fps / 4 MP @ 15fps / 3 MP @ 18fps / 1080p / 720p.
- CVI: 5 Megapixel / 4 Megapixel / 1080p / 720p.
- ANALOG (CVBS): 1200 TVL.
- AHD: 5 Megapixel / 4 Megapixel / 1080p / 720p.
- IP: 8 Megapixel.
- Power supply: 12 Vdc (includes power source 4-pins)
- Consumption without HDD: 25 watts.
- Operating temperature: -10 ºC up to 55 ºC
- Dimensions: 315 x 242 x 45 mm (W × D × H)
- Weight: 2 Kg without HDD.
- Does not include a hard drive
- Warranty: 4-years.
- Compatible with GAB-VID2-R2 metal gabinet.
- Multi-zone motion detection.
- Zoom digital in visualization and recording.
- Supports multiple types of recording, including real-time, manual recording.
- Intelligent search for recordings by motion detection.
- SDK and demo codes are provided to decrease application development time.
- Recording with automatic overwriting.
Inputs / Outputs Interfaces:
- HDMI / VGA video output: 1920×1080, 1280×1024, 1280×720, 1024×768.
- BNC video output: 1 Canal (BNC, 1.0Vp-p, 75Ω), resolución máxima: 704 x 480.
- HDMI and VGA: simultaneous output.
- 16 alarm inputs / 4 alarm outputs.
- Supports audio on all its channels by coaxitron using cameras with integrated audio.
- Input audio: 4 (RCA, 2.0 Vp-p, 1KΩ).
- Output audio: 1 (RCA, 2.0 Vp-p, 1KΩ).
- Serial interface: RS-485 (HIKVISION C, COAXITRON, PELCO D, PELCO P, etc).
- USB interface: 1 puerto USB 2.0, 1 puerto USB 3.0
- Network interface: 1 port (RJ-45 10/100/1000 Mbps).
- Capacity HDD: 2 @ 10 TB.
Outstanding Features:
The DVR also supports 4 video channels with activation of human body detection or vehicle detection, this allows us to be more precise when having a recording to be able to download any other type of movements
It is necessary to consider which of the analytics will be used since it is not possible to use both at the same time. When using the facial detection analytic it is not possible to activate the human body detection or vehicle detection or vice versa, when activating the human body detection or vehicle detection it is not possible to use the face detection analytic.
SensePlus Technology
SensePlus technology is based on EPCOM's Deep Learning algorithm. Deep Learning algorithms are much deeper than conventional intelligent algorithms, which only operate superficially. They perform feature learning, providing amazingly accurate and consistent video content analysis (VCA) performance.
SensePlus is able to differentiate, with high accuracy, a human body and a vehicle in a scenario with a large number of objects. Not only can it detect human and vehicle intrusion, but it can also filter out false alarms that may have been triggered by moving objects that do not present a risk.
The technology also provides a powerful and fast target search function that is able to analyze recordings and select all human or vehicle images that are linked to the related video clip.
