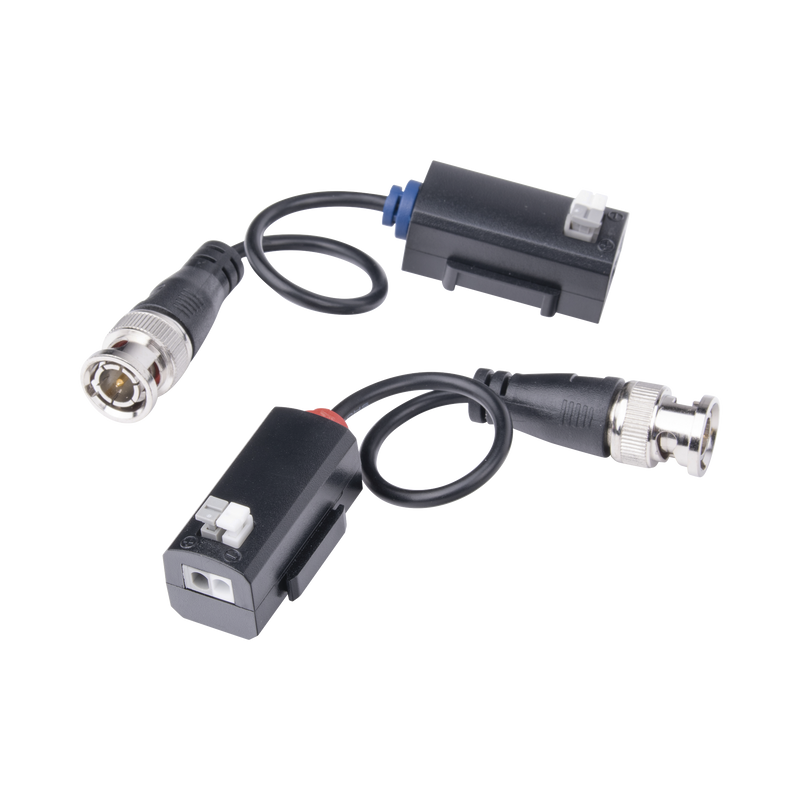

Transceiver Kit (Baluns) TurboHD Up to 4K HD-TVI / HD-CVI / AHD /CVBS/ COAXITRON/ AUDIO BY COAXITRON/With Shielded RF Cable.
- Brand / Vendor: EPCOM TITANIUM
- Hardware Model / MPN: TT101FTURBOZ
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: CCTV & Video
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: EPCOM TITANIUM | Model / MPN: TT101FTURBOZ
Availability: Immediate Dispatch from USA Warehouses
TT101FTURBOZ
Passive Video Transceiver Kit (Balun)
The TT101FTURBOZ video balun is a passive device that allows the transmission of HD CCTV video signals in real-time over twisted pair cable. It features Copper connectors that provide higher conductivity, better performance at high frequencies (HD video and long distances), and much lower attenuation. Some of the main advantages of this equipment include built-in solid-state TVS (transient voltage suppressor) for surge protection, anti-static properties, Grade 3 lightning protection, immunity to noise, and 60 dB crosstalk rejection. It is compatible with all HD-TVI/ CVI/ AHD/ CVBS analog cameras and widely used in CCTV cameras, monitors, DVRs, switches, IP encoders, and other CCTV equipment. Its PUSH-PIN terminals make UTP cable connection easy, and its PIGTAILs allow for convenient connection to the DVR in narrow or awkward spaces. Definitely a premium equipment, the competition doesn't offer as much in their products.
Key Features:
- Passive transceiver kit with PUSH-PIN terminals, both equipped with PIGTAILs.
- Compatible with cameras using HD-TVI / HD-CVI / AHD / CVBS technology.
- Compatible with analog cameras (CVBS).
- Supports Coaxitron, Audio over Coaxitron, and OSD menu.
- Real-time transmission over UTP cable cat 5e/6/6A/7.
- Anti-static wave filter design.
- Compatible video formats: NTSC, PAL, SECAM.
- Impedance: 75 ohms.
- Male connectors on BNC.
Physical and Electrical Characteristics:
- No power supply required.
- Dimensions: 38.4(L) x 18.6(W) x 19.5(H) mm (BNC connector and cable excluded).
- Weight: 22 grams.
- Operating temperature: -20°C to 70°C.
- Storage temperature: -40°C to 150°C.
- Relative humidity: 0~95% (non-condensing).
- ABS casing.
- Color: Black.
- 1-year warranty against manufacturing defects.
Key Features:
- Noise immunity and crosstalk rejection of 60 dB.
- Exceptional interference rejection.
- Built-in protection against overvoltage.
- Built-in solid-state TVS (transient voltage suppressor).
- Transmission of 150 meters (492 ft) for TurboHD in 4K.
- Transmission of 200 meters (656 ft) for TurboHD up to 5 MP.
- Transmission of 250 meters (820 ft) for TurboHD up to 2 MP.
-
Price per Kit.
