4-CHANNEL ACTIVE TRANSCEIVER Kit / VIDEO+POWER in a single UTP Cable / 150 meters in 4K, 200 meters in 5 MP/ Sends 36 Vdc and Receives 12 Vdc / ALL INCLUDED FOR RACK / Compatible with HD-TVI/CVI cameras/ AHD/CVBS / CLEAN INSTALLATION.
- Brand / Vendor: EPCOM TITANIUM
- Hardware Model / MPN: KITTT4PVTURBOX
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: CCTV & Video
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: EPCOM TITANIUM | Model / MPN: KITTT4PVTURBOX
Availability: Standard Supplier Lead Time
KIT-TT4PVTURBOX
TurboHD or HD-TVI is a protocol for high-definition video surveillance. SYSCOM TurboHD name it, we use the HD-TVI Techpoint in California, USA chip.
The TurboHD line is a hybrid of analog and IP, IP has quality but price and installation of an analog system.
Features:
- Power input: 110-220 Vac, 50-60 Hz
- Distance de 150 meters in 4K
- Power consumption: 150 W
- Output voltage of receiver: 36 Vdc
- Output voltage of transceiver: 12 Vdc
- Consumption of current by channel : 0.8 A
- Full Channel Support OSD ( On Screen Display ) with a high-quality image
- Support 4 K
- Easy and simple installation
- Transmission in real time
- Connectors: BNC and RJ45
- Dimensions : 300 x 261.2 x 67 mm ( mounting bracket excluded )
- Balun dimensions: length 8 cm, width 3 cm and height 2.3 cm
- Weight: 6.85 Kgs

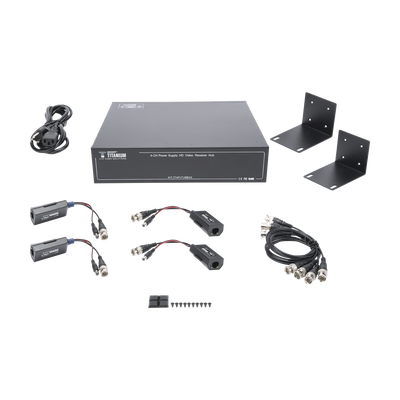

KIT includes:
- 1 active receiver of 4 channels
- 4 Transceivers of video/voltage
- 4 BNC cables for LOOP
Notes:
- The receiver sends 36 Vcc in this way it is guaranteed that the voltage reaches 150 meters in 4K, using 100% copper cable. The transceiver receives the 36Vcc and regulates to 12Vcc to feed the camera without compromising the operation.
- If you require compatible transmitters for ST KIT, recommend the model TT4816PVTURBOTX, It has no PTZ control via video signal (For use in coaxitron technology).
- Certifications: CE, FCC, RoHS
- If you connect this equipment to a UPS make sure it is pure sine wave.
- For Domes PTZ ( Consider distance and current draw, not equal or greater than 1.5 A, and not morethan 150 meters ).
WARRANTY : 1 Year
