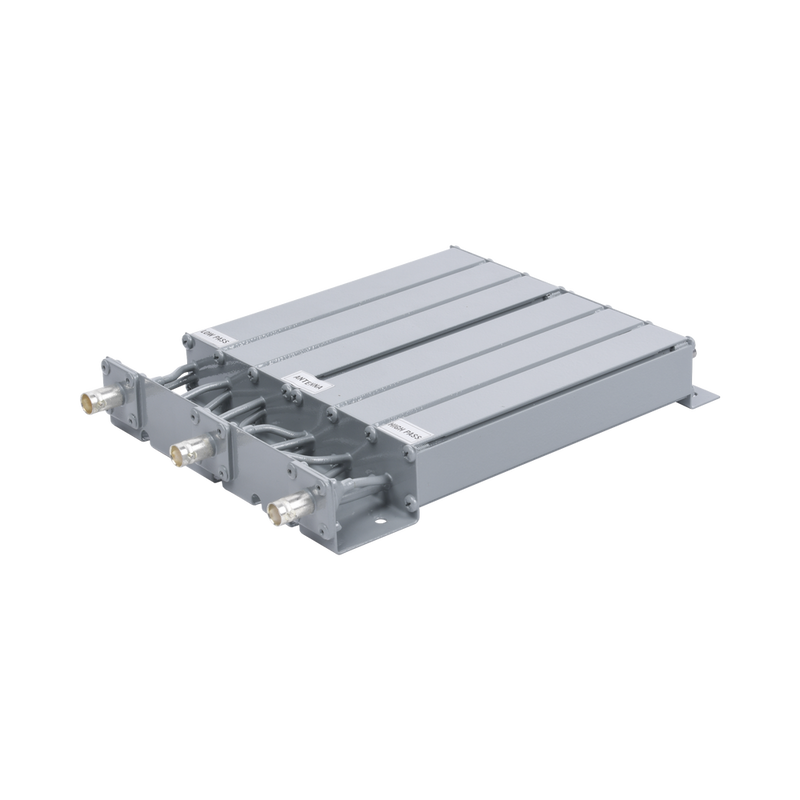

Band Reject UHF Duplexer for 403-430 MHz.

• Frequency Band: 403-430 MHz
• Frequency Spacing: 5 to 8 MHz.
• Continuos Power Input (Maximum): 50 Watt.
• Impedance: 50 Ohm.
• Insertion loss (TX-Ant): 1.2 dB max.
• Insertion loss (Ant-RX): 1.2 dB max.
• TX-RX Isolation: 80 dB typical.
• VSWR, max. (50 Ohms): 1.3:1
• Connectors: BNC (N Optional).
• Temperature Range: 14 to140º F (-10 to 60º C).
• Dimensions: 1.25 x 6.18 x 9.0' (31.8 X 157 X 228 mm).
• Weight: 3.5 Lb ( 1.7 Kg).

   Product Description

• -SYS-4533-xP series Mobile Duplexer uses six capacitively tuned TEM resonators in a compact
• extruded 6063-T5 aluminum templated housing, use solid shield copper jacketed Teflon inter-cabling for low loss and the entire unit is electrostatically painted for additional protection.
• Wide use in 'Full Duplex' systems with radio mobiles and repeaters  (50 W. máx).
• Minimum Frequency shift by temperature changes.
• The use of this device with less separation than 5 MHz between frequencies may cause operation problems to the repeater system.
• This device will not help you solve sensitivity problems in high RF locations.
• In order to interconnect the duplexer with the repeater, you must determine the lowest and highest frequencies, it does not matter which one is Tx or Rx.
