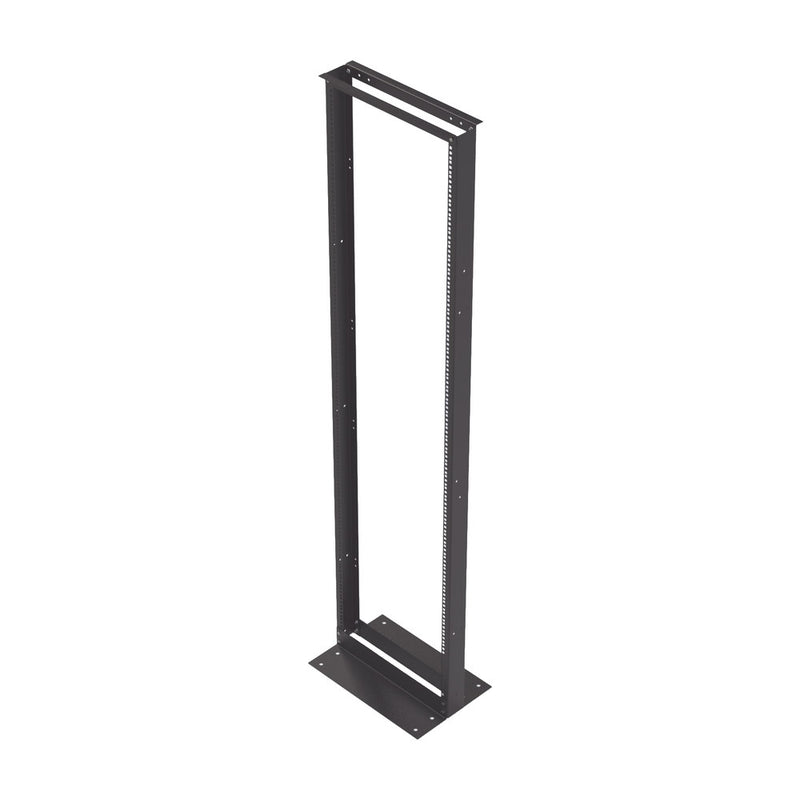

19' 45U Professional 2-Post Steel Open Frame Network Rack, Base Type L

• Solid squared base to support equipment
• The units are found marked for easy installation
• Meets the rule ANSI/TIA RS-310-D and IEC-2970-2
• Totally elaborated Steel sheet of top quality
• Is compatible with the model EIAAR 2036 (bracket for the wall) to secure in the superior part to wall and  make them totally rigid
• The equipment can be joined sideways to other equipment Rack Open line EIR

Physical Features:

• Paint: Electrostatic coating
• Color: Black embossed matte
• Application: Indoor.
• Material: Carbonated steel
• Rack Units: 45
• Weight: 33 lb (15 kg)
• Dimensions: 20.2 x 83.7 x 14.2' (515 x 2128 x 362 mm)

Includes:

• Two rack posts (AWG 14)
• Two L superior sections (AWG 14)
• Two L inferior sections to anchor in the floor (AWG 11)
• Screws for reinforcement
• Installation manual
• 12 Nuts for Rack
• 12 Plastic packing rings
• 12 Screws for installation equipment

Compatible equipment (Not included):

• Radio communication equipment and vigilance with preparation to install in Rack 19”
• TUERACK. Kit of nuts to install a Rack
• TORRACK. Kit of screws to install a Rack
• EIAAR2036. Kit to wall subjection

• Be sure to check that the installation is made by a professional
• Check if the screws are correctly adjusted
• Program a maintenance plan to clean the excess of dust and dirtiness on the equipment

The colors of the products may change for technical improvements.

The declared weight refers to the equipment without accessories or packing.

We manufacture cabinets to suit your needs.

For any question or comment contact the Engineering Dept.
