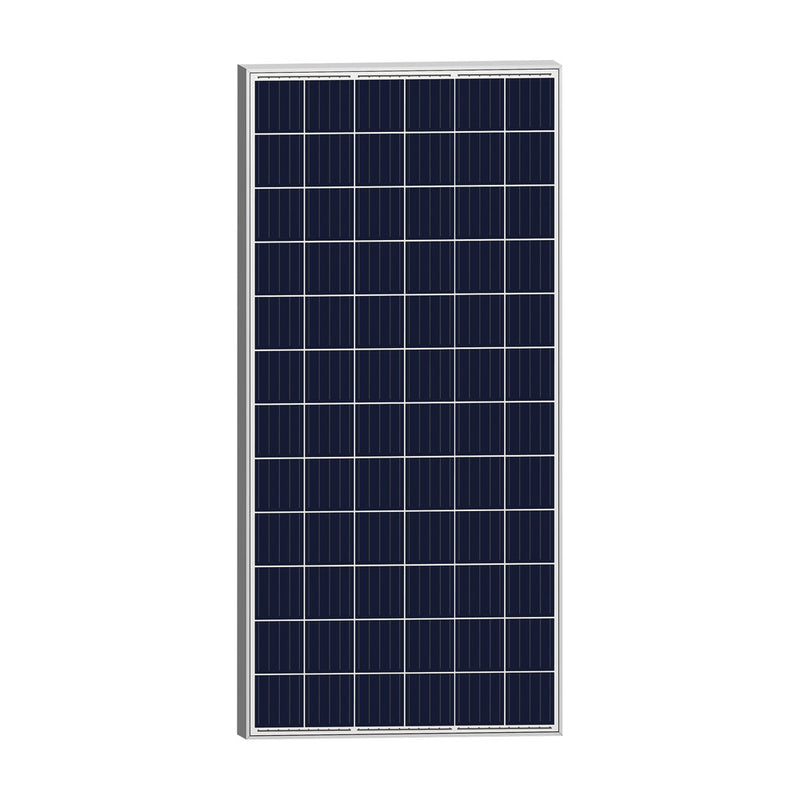

Solar PV Photovoltaic Module 340 Watts, 24 VDC, Polycrystalline, 72 Cells for On-Grid Systems
- Brand / Vendor: ECO GREEN ENERGY
- Hardware Model / MPN: EGE340P72
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Energy / Tools
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
EOS POLY
EGE340P72
Electrical data STC
Power output (Pmax) 340 W
Power tolerance 0~+5
Module efficiency 17.52 %
Maximum power voltage (Vmp) 38.42 V
Maximum power current (Imp) 8.85 A
Open circuit voltage (Voc) 46.58 V
Short circuit current (Isc) 9.23 A
Mechanical characteristics.
Number of cells 72
Dimensions 1,956x992x40mm
Weight 22.8 kg
Glass 3.2 mm Tempered Glass, High Transmission (>94%), Anti-Reflective Coating
Frame Anodized aluminium alloy
Junction box IP68 rated (3 by pass diodes)
Cable 4mm2, 900mm (+) 900mm (-) ; Length can be customized
Connector MC4 or MC4 compatible
Max front load (e.g.: snow) 5,400 Pa
Max back load (e.g.: wind) 2,400 Pa
