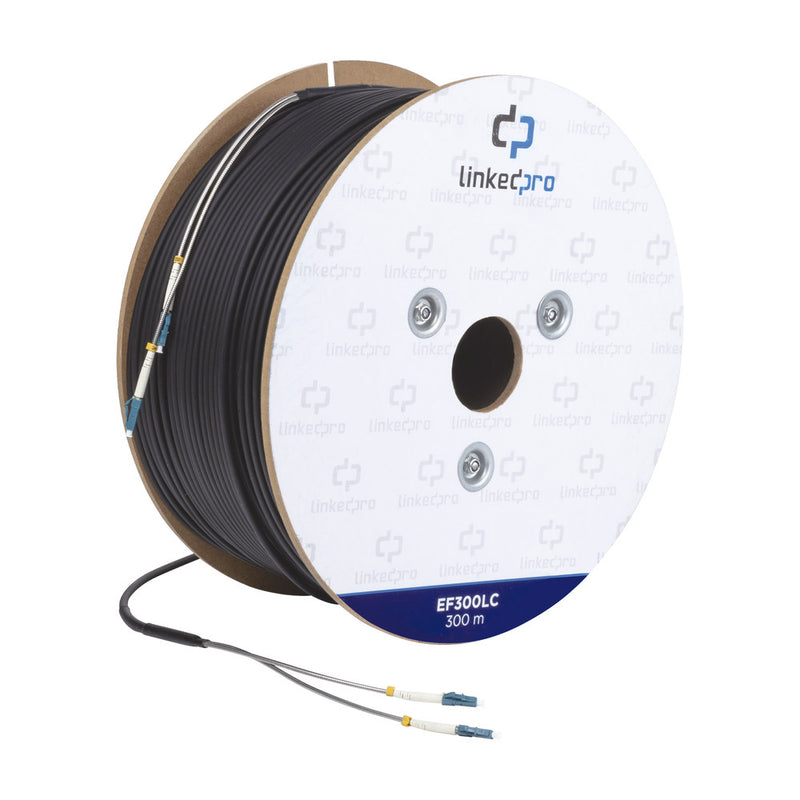

984 ft (300 m) Single-Mode Fiber Optic Cable Drum / LC-LC Duplex Connectors
- Brand / Vendor: LINKEDPRO BY EPCOM
- Hardware Model / MPN: EF-300-LC
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
984 ft (300 m) Single-Mode Fiber Optic Cable Drum — LC-LC Duplex Connectors
This pre-terminated single-mode 9/125 G.652D fiber drum from LinkedPro is designed for fast, reliable point-to-point links and surveillance backbones. The compact reel includes 984 ft (300 m) of tight-buffered fiber with factory-installed duplex connectors, delivering precise transmission and quick field deployment with no fusion splicing required.
A rugged black HDPE outer jacket protects the cable, while the white and yellow fibers simplify polarity identification. Combined with low attenuation and a wide operating temperature range, this drum is ideal for long camera runs, outdoor interconnects, and permanent or temporary links.
Product Overview
- Pre-terminated reel with LC-LC duplex connectors for easy installation.
- Single-mode 9/125 tight-buffered (900µm) G.652D fiber for precise transmission.
- 984 ft (300 m) drum length for long-distance camera or network runs.
- Mechanical connection system helps reduce field termination time and labor.
- Compatible with NVRs, switches, and media converters using LC interfaces.
Technical Specifications
- Fiber Type: Single-mode 9/125, tight buffer 900µm, G.652D
- Wavelength Range: 1310 – 1550 nm
- Connectors: LC-LC duplex (mechanical, factory-terminated)
- Wire Color: White & Yellow
- Attenuation @ 1310 nm: ≤ 0.4 dB/km
- Attenuation @ 1550 nm: ≤ 0.3 dB/km
- External Diameter: 0.21' (5.4 mm)
- Covering: Black HDPE jacket
Physical & Environmental
- Drum Length: 984 ft (300 m)
- Operating Temp: -4°F to 140°F (-20°C to 60°C)
- Min. Bend Radius (dynamic): 1.18 in (30 mm)
- Min. Bend Radius (static): 0.79 in (20 mm)
