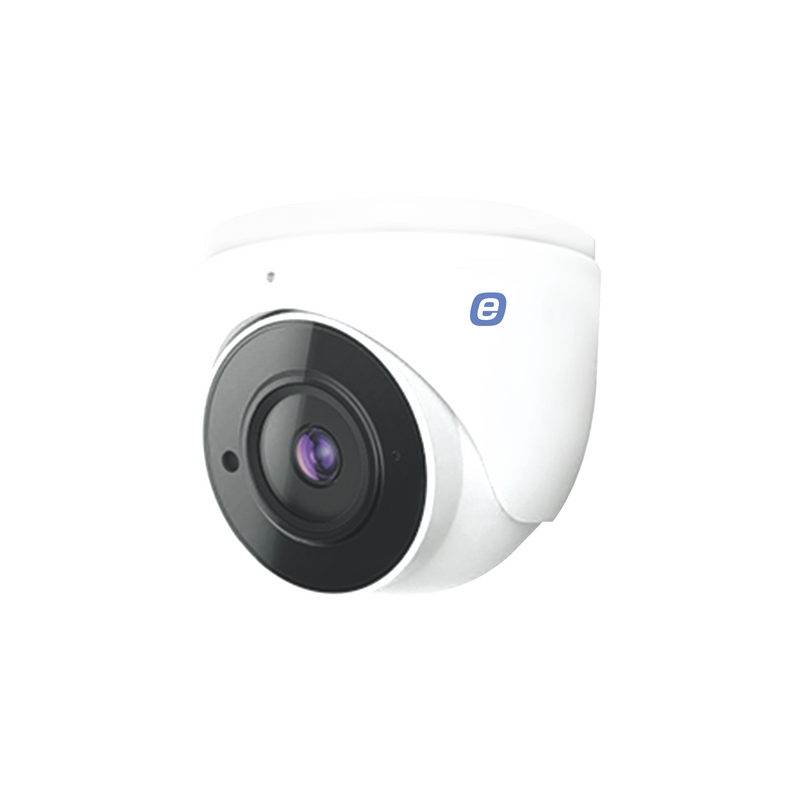

HD-TVI - Turret 2MP (1080p) / Smart Dual Light / 98ft (30m) IR & White Light / 2.8 mm Lens / IP67 / Metal Housing / Audio by coaxitron / Built-In Microphone
- Brand / Vendor: EPCOM
- Hardware Model / MPN: E8TURBODLGEN3(LA)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
IR LEDs and white-light LEDs work together, switching automatically so the camera can deliver either clean night detail or a full-color, well-lit scene depending on what the moment calls for.
| IR view distance | 20 ~ 30 m (98 ft) |
| White light view distance | Up to 20 m |
| Min. illumination | 0.005 lux @F1.2, AGC ON |
A built-in microphone sends sound over the same coaxial cable already running video, so audio capture doesn't mean pulling new cable — a real advantage on retrofit jobs.
| Audio | 1CH built-in mic |
| Transmission | Coaxitron (TVI mode only) |
| Video output | AHD / TVI / CVI / CVBS |
- Smart Dual Light: white light + IR LEDs
- Audio transmission over existing coax
- Built-in microphone
- 2 megapixel (1920 x 1080) resolution
- 2.8 mm wide-angle lens
- 4-in-1: AHD / TVI / CVI / CVBS output
- Digital WDR & 2D DNR
- Durable metal housing, IP67
- Image sensor: 1/3' CMOS
- Lens mount: M12
- S/N ratio: ≥52dB (AGC off)
- Frame rate: up to 25/30fps @2MP
- AGC, AWB, BLC, contrast, saturation, sharpness
- OSD menu via COC control
- Power supply: DC12V (±10%)
- Power consumption: <1W (LED off) · <4W (LED on)
- Dimensions: Ø3.72' x 3.26' (94.6 x 82.8 mm)
- Weight: approx. 0.88 lb (0.4 kg)
- Working environment: -22°F ~ 122°F, 10~90% RH
- Ingress protection: IP67
Where the dual-light + audio combo earns its place
A single 2MP turret that covers night visibility, color alerting and sound capture, without running extra cable.
Pick the right e-series 2MP turret
All three share the same 2MP sensor, 2.8 mm lens, 4-in-1 output and IP67 metal housing — they differ in illumination and audio.
| Model | Illumination | Audio | Typical use |
| E8-TURBO-GEN3 | IR only | No | General night surveillance |
| E8-TURBODL-GEN3 | Smart Dual Light (IR + white) | Built-in mic + coaxitron | Night + color + audio in one camera |
Compatible mounting accessories
The turret ships ready for direct surface mounting. For wall, ceiling or pole installs, use the matching e-series mount.
Full specifications
| Camera | |
| Image sensor | 1/3' CMOS |
| Resolution | 2MP, 1920 x 1080 |
| Video output | AHD / TVI / CVI / CVBS |
| Audio | 1CH built-in mic, coaxial audio (TVI mode only) |
| Image system | PAL / NTSC |
| Electronic shutter | Auto |
| View distance | IR: 20~30 m · White light: up to 20 m |
| Frame rate | AHD/TVI/CVI: 2MP @25/30fps · CVBS: PAL/NTSC |
| Min. illumination | 0.005 lux @F1.2, AGC ON · 0 lux (LED ON) |
| Lens | 2.8 mm, M12 mount |
| S/N ratio | ≥52dB (AGC OFF) |
| Ingress protection | IP67 |
| Functions | |
| Function control | OSD menu (COC control) |
| Digital WDR / DNR | Yes · 2D DNR (3D only with TVT DVRs) |
| AGC / AWB / BLC | Yes |
| Contrast / Saturation / Sharpness | Yes |
| Defect correction | Auto |
| OSD language | Chinese and English |
| Angle adjustment | Pan 0°~360° · Tilt 0°~75° · Rotation 0°~360° |
| Physical & Power | |
| Power supply | DC12V (±10%) |
| Power consumption | LED OFF: <1W · LED ON: <4W |
| Working environment | -22°F ~ 122°F (-30°C ~ 50°C), 10~90% RH |
| Dimensions | Ø3.72' x 3.26' (94.6 x 82.8 mm) |
| Weight | Approx. 0.88 lb (0.4 kg) |
| Housing | Durable metal, turret form factor |
| Warranty | 5 years with Epcom |
