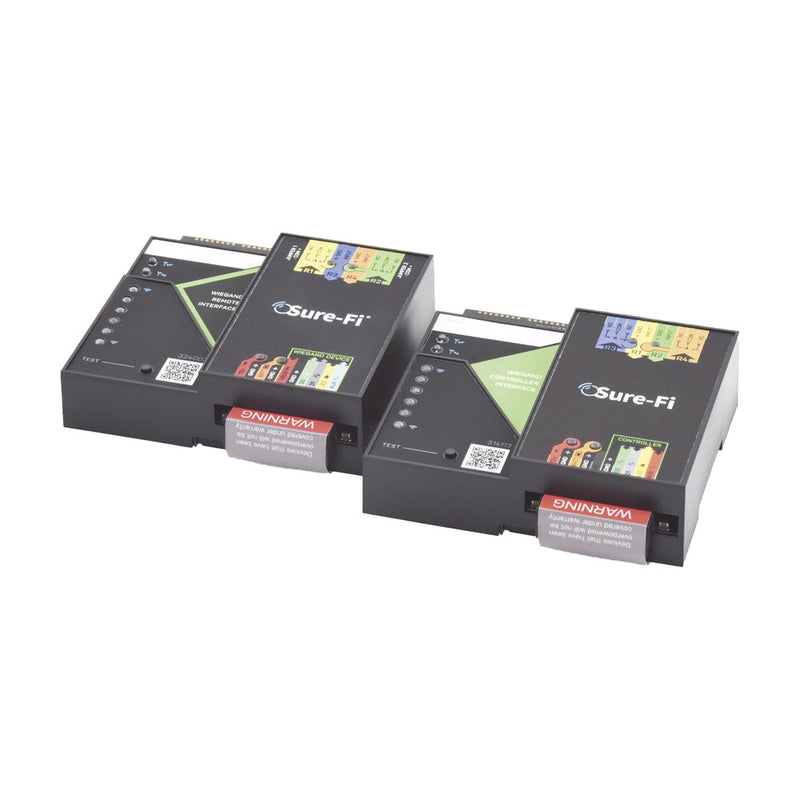

Wiegand Wireless Bridge / 1 Wiegand / 2 Relays / 2 Inputs / Traverse up to 1 mile of construction or material
- Brand / Vendor: Sure-Fi
- Hardware Model / MPN: DS004BRIDGE
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Sure-Fi Wiegand
This device is a Wiegand protocol remote controller; Replace wiring in a new or existing system of Wiegand connections.
Sure-Fi Wiegand is installed in minutes, as well as being very competitive with the cost of wiring for all types of jobs (easy and difficult cable pulls).
It is compatible with any device that works through the Wiegand protocol.
It also has AES128 encryption security (Advanced 128-bit Encryption System)
- Works with any Wiegand protocol
- 1 Wiegand input
- 2 relay outputs (Wet or Dry)
- Request to exit input (REX)
- Door monitor input (DPS)
- Battery backup input with battery charger and UPS function
- DIN rail mount or direct wall mount
- Signal Strength, Transmit & Receive indicators
- Test Button for easy range testing
- Field congurable and updatable with the Sure-Fi App
- Up to 1-mile range through obstructions and 50+ miles line-of-sight
- Patented Bunker Busting Technology, using 900 MHz
- Works inside metal enclosures
- Proprietary PCB Antenna design
- FCC (USA) and IC (Canada) certified
- Operating Voltage: 12VDC (9VDC tp 15VDC)
- Operating Current (@12VDC): 0.08A (idle), 0.3A (transmit)
- Operating Power (@12VDC): 3.6 Watt (peak)
- Transmit Power: 1 Watt (30dBm)
- Frequency Band: 902 - 928MHz
- Channels: 72 (Frequency Hopping)
- Receiver Sensitivity: -133dBm
- Link Budget: 163dB
- Range: Up to 1 mile through obstructions and 50+ miles line-of-sight
- Encryption: AES128
- Battery Backup Connection: 12V Sealed Lead Acid (SLA) type only
- Battery Charge Voltage: 13.75V maximum at standby
- Relays: 2A 250VAC / 2A 250VDC wet or dry NO, NC, COM (x2)
- Operating Temperature: -40º F to +185º F
- Storage Temperature: -67º F to +257º F
- Mounting Options: DIN (35mm x 7.5mm) or directly mount with two screws
