Traffic Control Barrier Gate with Auto Spike System
- Brand / Vendor: DKS DOORKING
- Hardware Model / MPN: 1603-180
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: DKS DOORKING | Model / MPN: 1603-180
Availability: Standard Supplier Lead Time

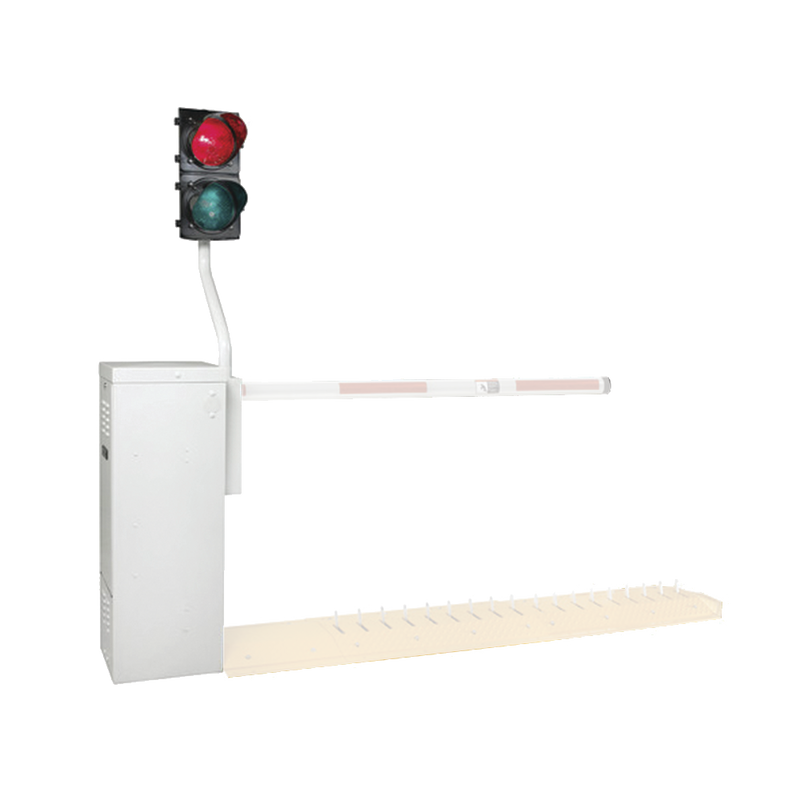

The DKS model 1603 Barrier Gate Operator / Automated Spike System is designed as a modular system allowing for easy flexibility in different applications and easy installation. The 1603 operator is designed with many advanced features and mechanically links the spikes to the barrier arm. The surface mount spikes are easy to install and do not require any trenching or excavating. The 1603 auto-spike system is ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.
A complete 1603 / auto-spike system consist of several different components. A typical system will require a 1603 operator, transfer box (transfer box is factory installed to the 1603 operator), tunnel section(s) as needed, spike section(s) as needed, end cap, barrier arm, and arm hardware kit.
Features:
- Built-in power On/Off switch.
- Left or right hand mount.
- 14 ft. aluminum barrier arm (not included, order separately).
- Barrier arm hardware kit (not included, order separately).
Specifications:
- 1/2 HP continuous-duty motor.
- 115, 230°, 460° VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- Arm rotates 90° in approximately 1.5 seconds.
- Class II, III and IV applications.
- Dimensions: 15.25'W x 43.5'H x 15.5'D.
Spike Components:
- Tunnel sections surface mount: 31'W x 3'H x 24 or 36'L
- Spike sections surface mount: 31'W x 3'H x 36'L
- End Cap: 31'W x 3'H x 12.25'L
Choose your accesories:
-
STEP 1. Choose a Hardware Kit:
- ​1601240: Wood Arm Kit
- 1601242: Aluminum Arm Kit - non lighted
- 1601242: Aluminum Arm Kit - lighted
-
STEP 2. Choose an Arm:
- ​1601348: Wood Arm 14-ft
- 1601516: Aluminum Arm 14-ft
- 1601518: Aluminum Arm 14-ft Lighted*
-
STEP 3. Select Spike Components:
- ​1603163: Spike section 3-ft **
- 1603168: Drive Extension 18' Required
- 1603170: Tunnel Extension 18' **
- 1610240: End Cap
*Requires 1601535 power harness
** Combination of spike sections / tunnel extensions should not exceeed 12 feet in width
