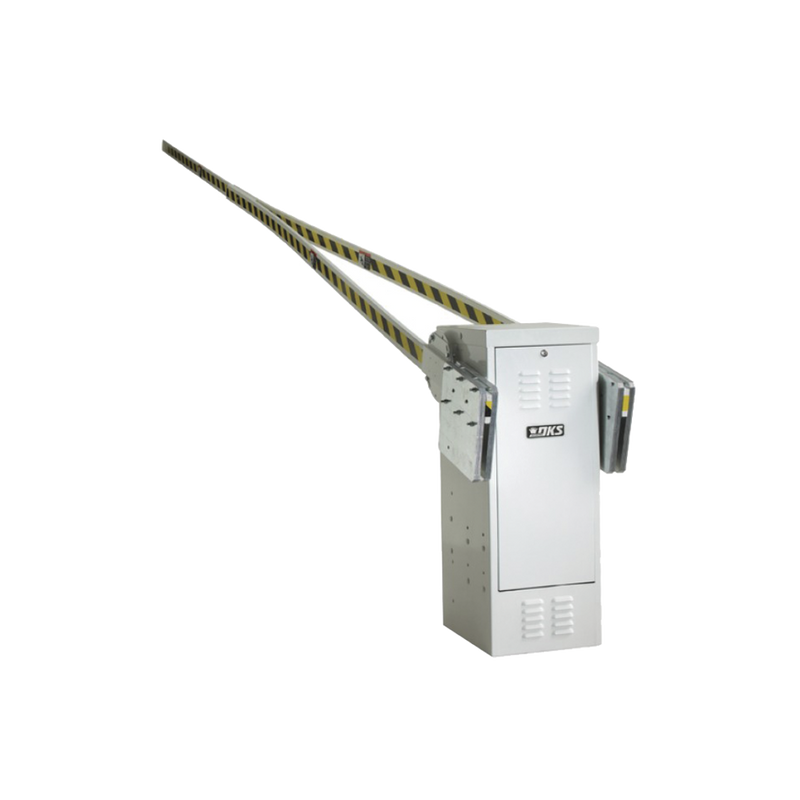

3-Piece Wishbone Arm for 1602-090 (20ft)
- Brand / Vendor: DKS DOORKING
- Hardware Model / MPN: 1602-340
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: DKS DOORKING | Model / MPN: 1602-340
Availability: Standard Supplier Lead Time
3 piece wishbone arm for 1602-090 (20ft)
*Requires 1602-041
Features:
- Magnetic limit control.
- Ports for plug-in loop detectors.
- Automatic sequencing inputs for use with slide and swing gate operators.
- Up input memory buffer.
- Down memory option.
- Multiple up commands.
- Two convenience outlets.
- Gate tracker reporting output.
- Programming switches.
- Built-in power On/Off switch.
- Left or right hand mount.
Specifications:
- 1 HP continuous-duty motor.
- 60:1 gear-box running in a continuous oil bath.
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- Arm rotates 90° in approximately 5.5 seconds.
- Class III and IV applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Dimensions (operator only): 15.25"W x 39.75"H x 15.75"D.
