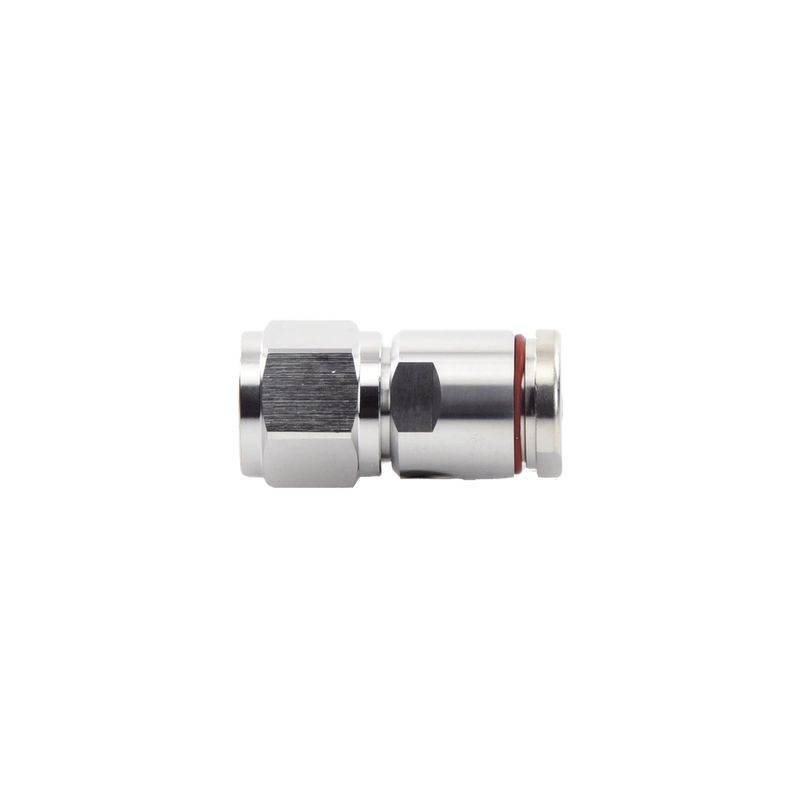

Type N Male for CNT-400, 9913, RG8/U braided cable, captivated pin
- Brand / Vendor: COMMSCOPE (ANDREW)
- Hardware Model / MPN: 400-BPNM-C
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: COMMSCOPE (ANDREW) | Model / MPN: 400-BPNM-C
Availability: Immediate Dispatch from USA Warehouses
| General Specifications | |
| Interface | N Male |
| Body Style | Straight |
| Brand | CNT® |
| Electrical Specifications | |
| Operating Frequency Band | 0 – 6000 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Inner Contact Resistance, maximum | 1.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Peak Power, maximum | 10.00 kW |
| Insertion Loss, typical | 0.05 dB |
