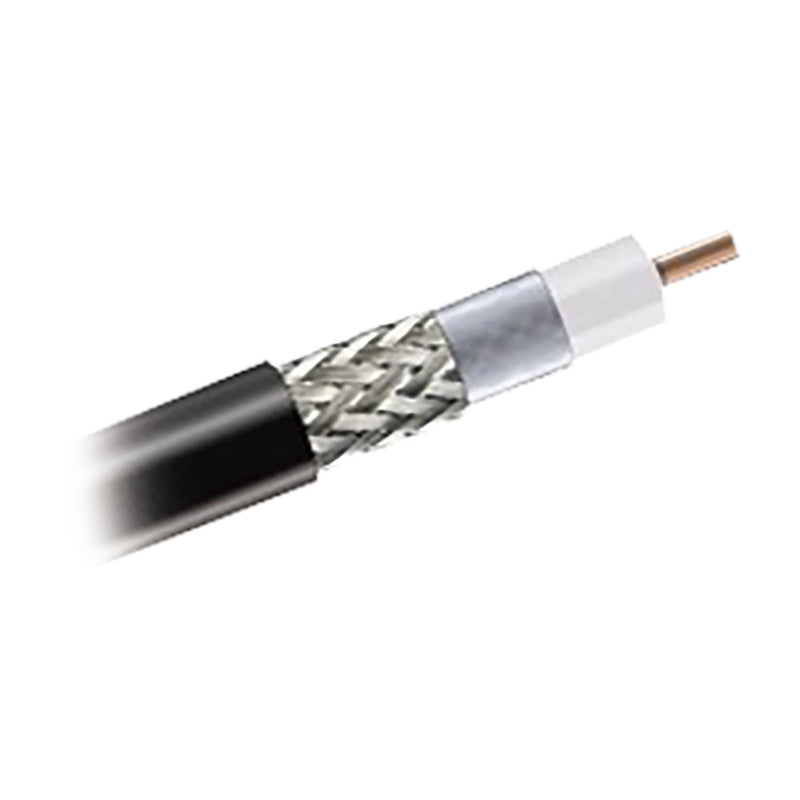

Coaxial cable with 90% shielding, RoHS certification, aluminum-coated copper conductor, 50 Ohms, 1640 ft reel.
- Brand / Vendor: COMMSCOPE (ANDREW)
- Hardware Model / MPN: CNT400/1640
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
CNT-400 Coaxial Cable
High Efficiency and Superior Performance
Introduction
The CNT-400 from CommScope is a high-performance coaxial cable designed for applications that require the perfect balance between flexibility, low loss, and high durability. Ideal for a wide range of RF communication uses, the CNT-400 offers advanced technical characteristics that make it the best option on the market. With international certifications, this cable is synonymous with reliability and efficiency.
Specifications
Product Classification
- Product Type: Braided coaxial cable
- Brand: CNT®
- Series: CNT-400
General Specifications
- Braid Coverage: 90%
- Jacket Color: Black
Dimensions
- Dielectric Diameter: 7.24 mm | 0.285 in
- Jacket Diameter: 10.29 mm | 0.405 in
- Tape Diameter: 7.391 mm | 0.291 in
- Inner Conductor Diameter: 2.74 mm | 0.108 in
- Outer Conductor Diameter: 8.08 mm | 0.318 in
- Nominal Size: 0.400 in
Electrical Specifications
- Impedance: 50 ohms
- Capacitance: 78 pF/m | 23.774 pF/ft
- DC Resistance (Inner Conductor): 4.69 ohms/km | 1.43 ohms/kft
- DC Resistance (Outer Conductor): 5.61 ohms/km | 1.71 ohms/kft
- DC Test Voltage: 2500 V
- Jacket Test Voltage (rms): 4000 V
- Maximum Frequency: 16.2 GHz
- Operating Frequency Band: 30 – 6000 MHz
- Peak Power: 16 kW
- Shielding Effectiveness: 90 dB
- Velocity: 85%
Materials
- Braid Material: Tinned copper
- Dielectric Material: Foamed polyethylene
- Jacket Material: Non-halogenated polyethylene
- Inner Conductor Material: Aluminum-clad copper wire
- Shield Tape Material: Aluminum
Mechanical Specifications
- Minimum Bend Radius: 25.4 mm | 1 in
- Tensile Strength: 73 kg | 160.937 lb
- Bending Moment: 0.7 N·m | 6.196 in·lb
- Flat Plate Crush Resistance: 0.7 kg/mm | 39.198 lb/in
Environmental Specifications
- Installation Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -70 °C to +85 °C (-94 °F to +185 °F)
