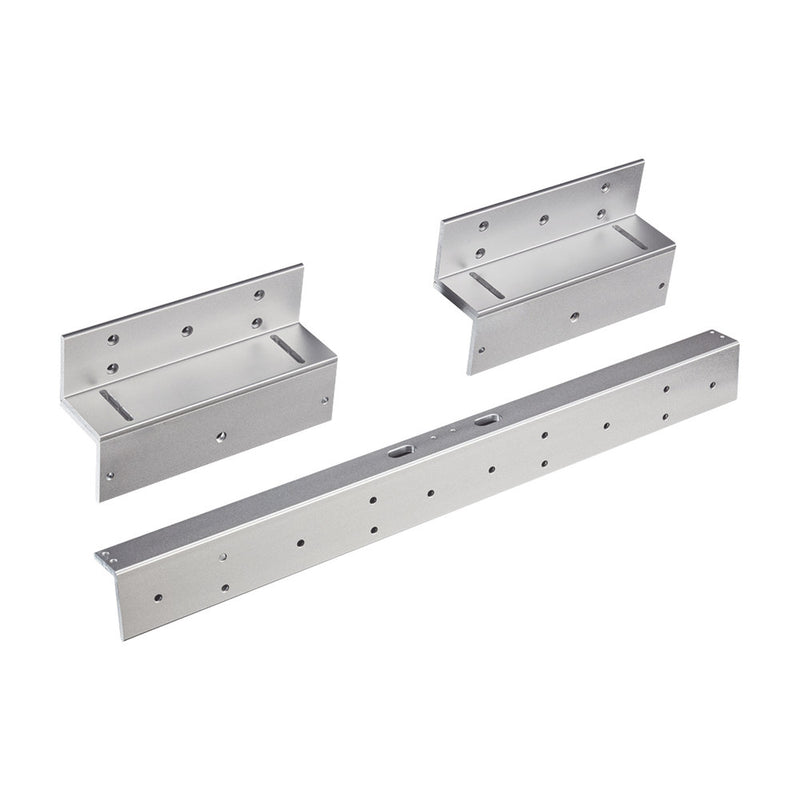

Mount for MAG600NDLED Z and L shape.
- Brand / Vendor: ACCESSPRO
- Hardware Model / MPN: BZL600ND
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Z and L Bracket Kit for MAG600NDLED Magnetic Lock
This mounting kit is designed for installing the MAG600NDLED electromagnetic lock on inward-opening doors. It consists of two independent brackets in Z and L configurations, constructed from reinforced aluminum to support the magnet load and maintain proper alignment between the armature plate and the magnet body. The L bracket provides the primary vertical support, while the Z bracket enables the necessary offset when the door frame does not allow direct mounting. The combination of both profiles facilitates adaptation to different frame types and wall thicknesses.
Main Features
- Kit includes Z bracket and L bracket for complete installation
- High-strength reinforced aluminum construction
- Compatible with MAG600NDLED electromagnetic lock
- Designed for inward-opening door applications
- L bracket dimensions: 500 x 48.8 x 30.4 mm
- Z bracket dimensions: 180 x 50 x 50 mm
Physical Specifications
Material: Reinforced aluminum
L bracket: 500 x 48.8 x 30.4 mm
Z bracket: 180 x 50 x 50 mm
Package Contents
1x L-shaped bracket
1x Z-shaped bracket
Typical applications: Access control on wood or metal inward-opening doors where magnetic lock mounting is required on frames with space or alignment limitations.
