BIRD General Purpose Wattmeter, Series 43, 100 mW-10 kW and Freq. Range from 450 kHz to 1260 MHz, depending on the Element (Not Included).
- Brand / Vendor: BIRD TECHNOLOGIES
- Hardware Model / MPN: BIRD-43
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: BIRD TECHNOLOGIES | Model / MPN: BIRD-43
Availability: Standard Supplier Lead Time

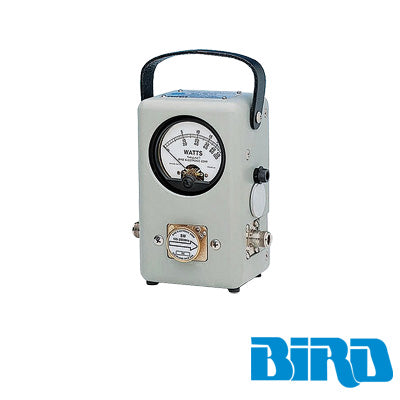

BIRD General Purpose Wattmeter Series 43 - The Industry Standard
A field-proven portable, insertion-type instrument designed to measure both forward and reflected CW power in coaxial transmission lines under any load condition. With a full-scale accuracy of ± 5%, it accurately measures RF power with low added VSWR and insertion loss. QC (quick change) type connectors and a full range of plug-in elements provide a wide choice of frequency ranges and power levels giving the Model 43 amazing flexibility. Two extra elements can be stored in the housing, one on each side. The Model 43 is easy to use and simple to service in the field.
- Accurate CW field power measurement over 450 kHz to 2.7 GHz and 100 mW to 10 KW.
- Uses industry standard Bird elements with space to store 2 additional within the meter housing
- Rugged metal housing for the most demanding environments
- Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
PRODUCT SPECIFICATIONS:
| Item No | 43 |
| Item Name | General Purpose Wattmeter |
| Power Range | 100 mW to 10 kW (using Bird® Plug-in Elements) |
| Frequency Range |
