Wide Bandwidth Directional Thrueline Wattmeter, 25-1000 MHz Fixed Element, 5-500 Watt .
- Brand / Vendor: BIRD TECHNOLOGIES
- Hardware Model / MPN: 4304A
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: BIRD TECHNOLOGIES | Model / MPN: 4304A
Availability: Standard Supplier Lead Time
Wide Bandwith Directional Thrueline Wattmeter​.

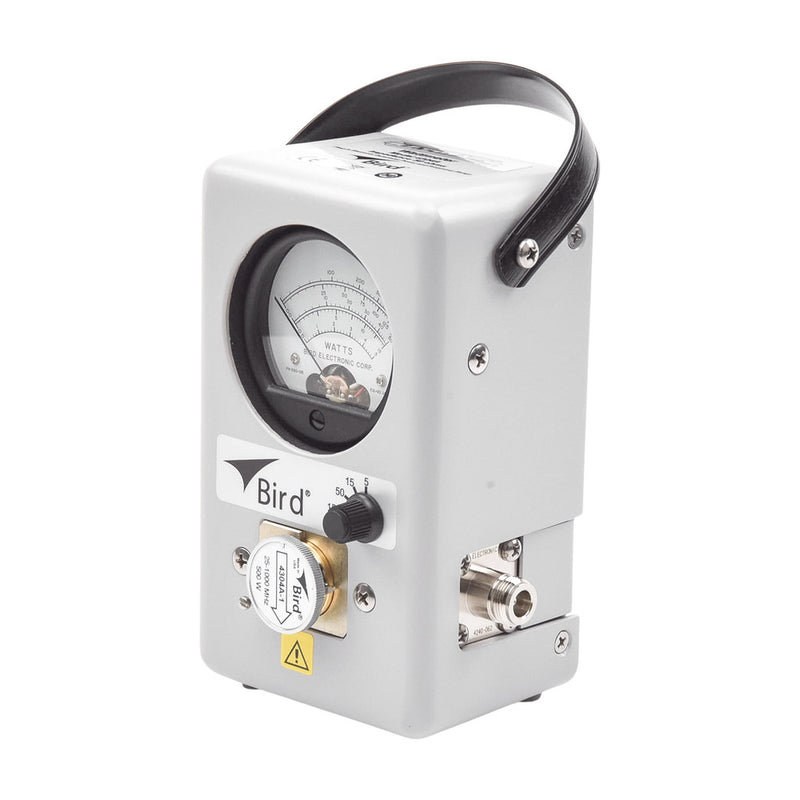

The 4304A is an insertion-type RF wattmeter, designed to measure RF power levels and load match in 50-ohm coaxial transmission lines (VSWR) using just one element, already included.
4304A, Fixed 25-1000 MHz 5-500 Watt Element, Wattmeter uses the basic construction of the Model 43 and modifies it with a special broadband element and range switch for general purpose RF power measurement without the hassle of carrying a set of individual elements.
- Fixed 25-1000 MHz, 5-500W, Portable Wattmeter
- Uses a Single Broadband Element with a 5-position Range Switch
- Same rugged metal housing as the Model 43
- Quick Change (QC) connectors to minimize the need for adaptors when making critical measurement
PRODUCT SPECIFICATIONS:
| Item No | 4304A |
| Item Name | Fixed 25-1000 MHz 5-500 Watt Element, Wattmeter |
| Power Range | 5, 15, 50, 150, 500 W, with no scale limitations except power limited to 150 W from 800-1000 MHz |
