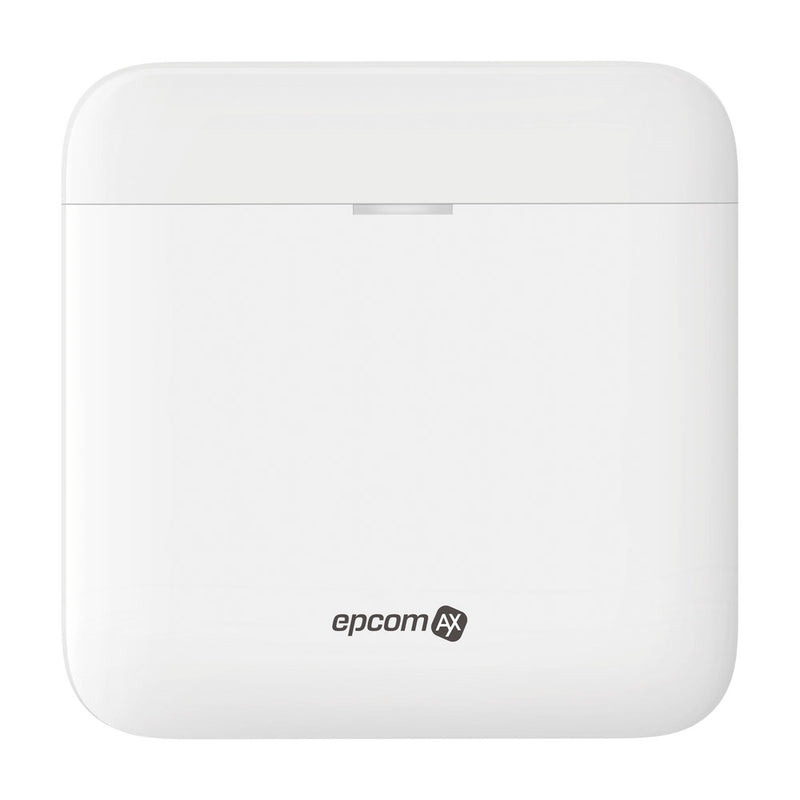

(epcom AX) Wireless Alarm Panel / Supports 48 Zones / Wi-Fi and Ethernet / Compatible with epcom AX Accessories.
- Brand / Vendor: EPCOM
- Hardware Model / MPN: AXP48Z(EN)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Intrusion Systems
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
- Support up to 48 zones or alarm outputs (allows combining between outputs and zones).
- Support up to 8 Tag Readers or Keyboards (allows combining between readers and keyboards).
- Support up to 4 wireless sirens (2 indoor and 2 outdoor).
- Support up to 16 controls (keyfob) and 16 tags.
- Support up to 2 repeaters.
- Supports video viewing of the event through the mobile client and email.
- Voice prompt for setup and operation.
- Configuration via the web, mobile client, or client software.
- Send alarm notifications through Push and Email notifications.
- Optional wristband accessory available.
- Supports LAN /Wi-Fi connection (2.4GHz).
- Power consumption: 110VAC.
- Operating temperature: 14° to 131°F.
- Dimension: 6.7' x 6.7' x 1.5'.
- Weight: 19.7 oz.
- Warranty: 5 years.
Epcom AX supports Wi-Fi and TCP / IP communication methods. It also supports ISAPI, Hik-Connect, and DC-09, which is applicable to market, store, home, factory, warehouse, office, etc. scenarios.
The panel supports communication with EXTRIUMDT42MV2 alarm control panels.
NOTE: If the control panel has an old version, it is necessary to contact the engineering department to verify the upgrade option.
Epcom AX Series
Do you need to protect your home, office or store?
Tired of so many cables and a lot of installation time?
Use a professional wireless solution!
Make sure that all your equipment is compatible with Epcom AX line.
WHAT´S NEW IN THE EPCOM AX SERIES
SIGNAL REPEATER AXREP
Increase the coverage of your devices
It extends the signal from the AXPRO series devices, receives alarm, status and control messages from the devices and repeats these messages to the control panel.
- ✓Stable and secure 433 MHz two-way wireless communication.
- ✓LED indicator, shows the different status of the device with easy understanding.
- ✓Up to 35 hours of battery backup after main power loss.
- ✓Find and connect detectors automatically, intelligent automatic pairing.
- ✓Easy installation due to new designed.
PIR DETECTOR WITH WIRELESS CAMERA AXDPIC12(P)
Fully supervised two-way wireless detector with built-in high quality camera that can provide an ideal solution for video verification.
- ✓Detection range: 12 m.
- ✓Detection angle: 85.9 °.
- ✓Immunity against pets: 30Kg.
- ✓Maximum camera resolution: 640 x 480.
- ✓Operation Voltage: 3 x CR123A (Included).
- ✓Battery life: 6 years
- ✓Tamper protection.
ACCESSORIES TO AUTOMATE
AXOH
- ✓Bidirectional 433 MHz wireless communication / AES-128 encryption.
- ✓LED display, shows device status: on / off.
- ✓Small box design, which can be easily hidden.
- ✓Automation operation, on / off button from: app / control / keyboard.
- ✓Scenario configuration for different events.
- ✓1 Relay output: NO / NC (100 to 240 VAC / Max. 13 A)
- ✓Operation Voltage: 100 VAC to 240 VAC.
- ✓Operating temperature: 14 ° to 131 °F.
AXOL
- ✓Bidirectional 433 MHz wireless communication / AES-128 encryption.
- ✓LED display, shows device status: on / off.
- ✓Small box design, which can be easily hidden.
- ✓Automation operation, on / off button from: app / control / keyboard.
- ✓Scenario configuration for different events.
- ✓Using the alarm input, it can be used as a zone input for the panel.
- ✓1 Relay output: NO / NC (0 to 36VDC / Max. 5 A).
- ✓1 Alarm input: NO / NC.
- ✓Operation Voltage: 7VDC to 24VDC.
- ✓Operating temperature: 14° to 131°F.
